1600mm industrial hardboard production line

The automatic hardboard production line applys to laminating 2-4 ply materia! weight of 300-600g/ m2〇 The machine is composed mainly of stand, bridge conveyor, gluer, compactor press,(platform) dryer, cooler, thin blade slitter scorer, CNC cutting machine and stacker. With characteristics of advanced production engineering, easy operation and maintenance,safe and steady, energy saving and environment friendly. Size 1200mm~2200mm are optional, quantified 2000g/m2, thickness 3.5mm, through put 35T-80T/D. The the thickness, tightness, moisture content, smoothness, stiffness and tensile strength can reach the standard of the imported products. Which can eventually replace the imported corrugated board, which suit for the cigarette box, wine box, food box, hard book cover, High-end gift box and stationery. The production line makes up for many defects of the manual laminator,greatly reduced the cost of production, improved the quality of production, increased the economic efficiency. It is your ideal choice to product corrugated board and carton boxes.

1600mm industrial hardboard production line technological paramete

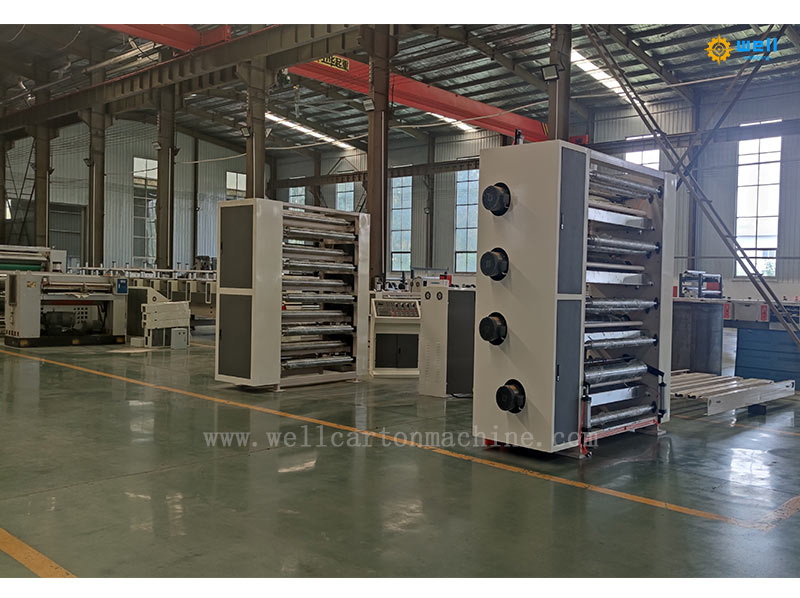

♦ The temperature of quartz tube of pre-heater can be adjusted according to the moisture content of paper, increasing the smoothness of the paper.
♦ The heating roller is surface grinded and chrome covered, making even heating of the paper before it goes into the gluing machine.

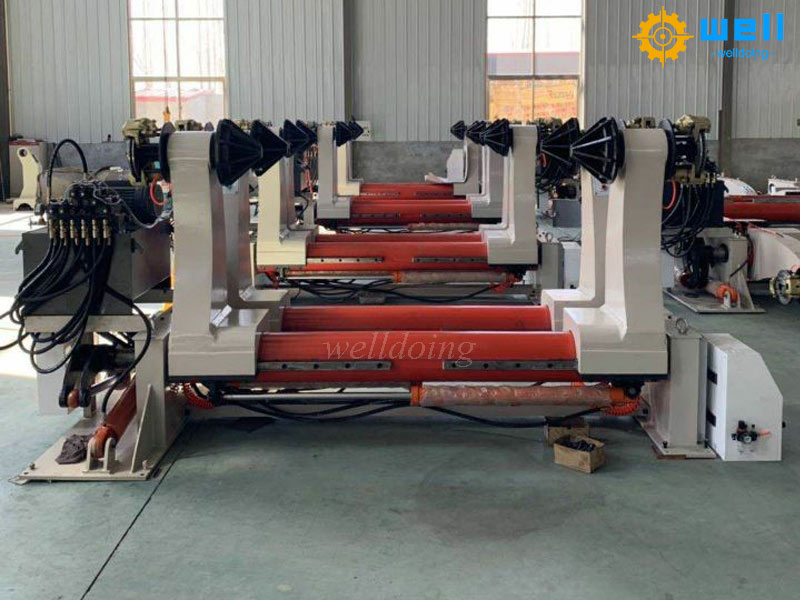

♦ This machine has 4 levels that each has stand, guiding roll, corrector, automatic oil pressure control aligning and automatic correcting of paper.

♦ The gluing machine is to glue on the material paper.

♦ Each gluing is independent driven, frequency controlled to guarantee the gluing roller keep the same speed to the double facer.

♦ the anilox gluing roller is surface grinded and chrome covered.

♦ The rubber gluing roll can be adjusted to make even gluing.

The guiding roll is pneumaticly control, convenience for operation.

The compacting machine is one of the important parts of carton board production line. It use the upper roll and lower roll to press the base paper and face paper to be multilevel carton board.

The slitting machine is one of the important parts of carton board production line. It cuts the carton board in length way s.the cutting blade adopts 9CrSi alloy steel, with characteristic of sharp edge and long use time, the machine is electrically correct a error which can match with the shifting of carton board.

♦ Rational mechanical structure, strong form, good stability, have long performance life.
♦ All operation control on the same side, easy to operate, with photoelectricity counter.
♦ crosscut 400mm-9999mm.
♦ Cut paper precision ± 1 mm.

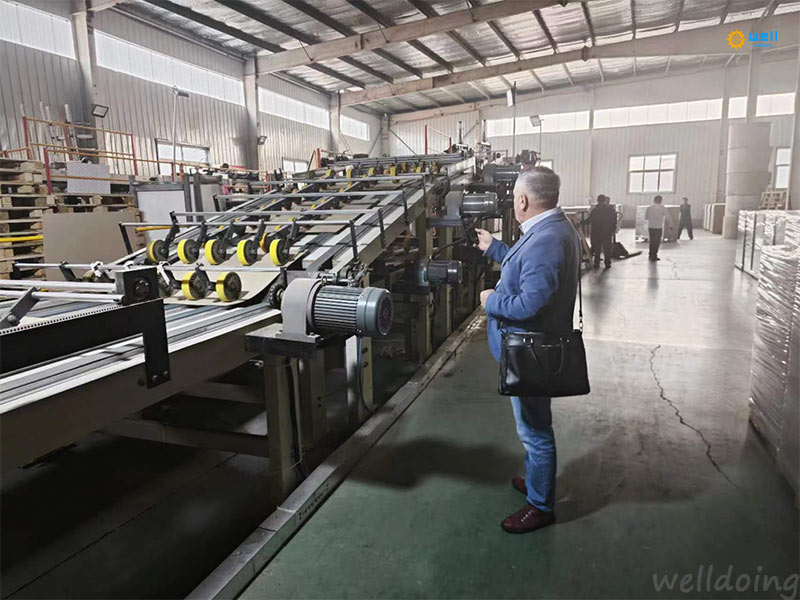

Customer visit our factory
