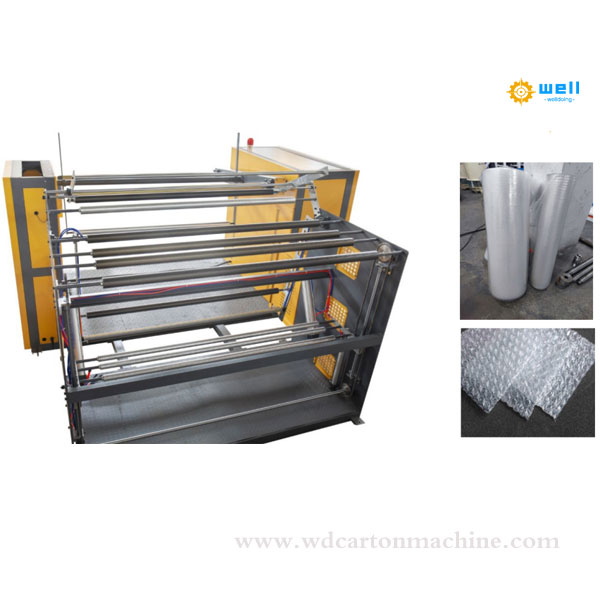

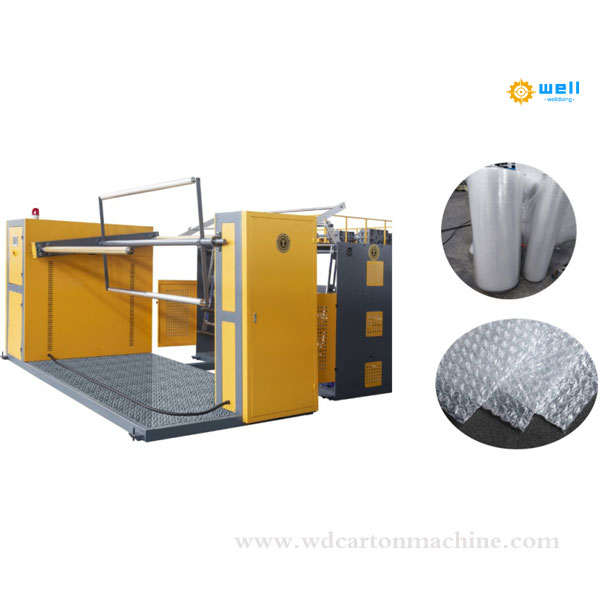

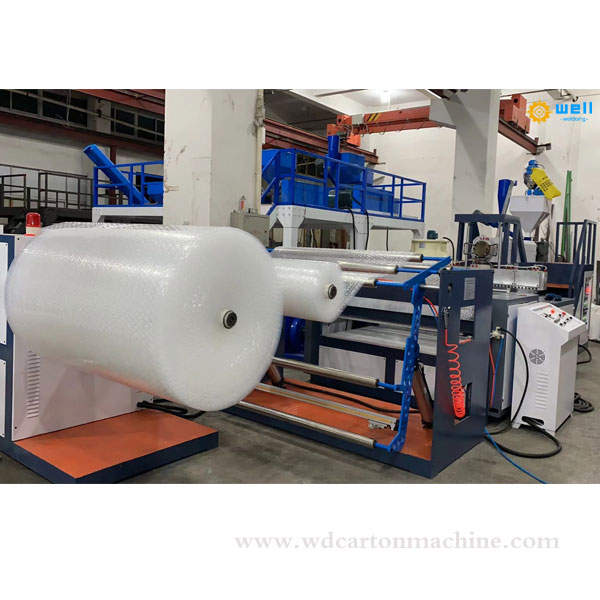

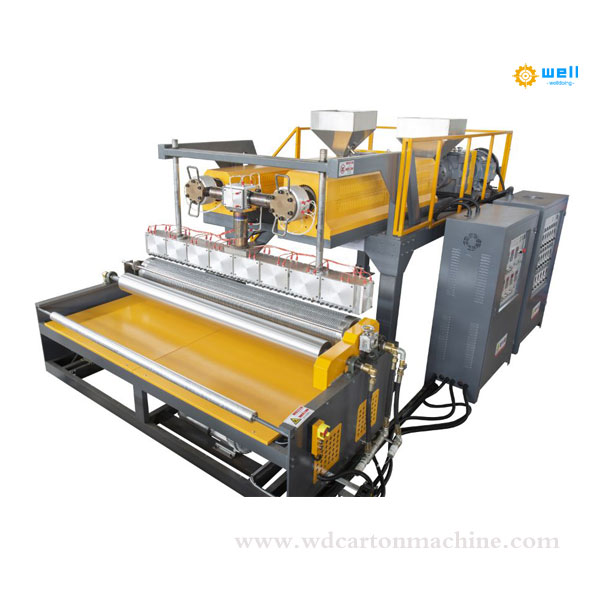

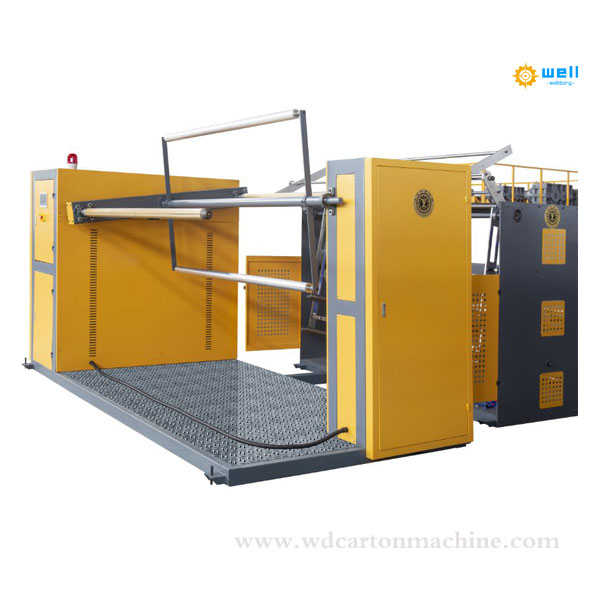

Air bubble packaging machine | Multi-layer PE air bubble machine - Welldoing trading limited
air bubble packaging machine is mainly composed of seven main components: extruder, vacuum bubble forming mechanism, point breaking mechanism, waste collection mechanism, and electrical control system. It is a mechatronic product that realizes automatic control of raw materials from the feeding port to the finished product winding.
The full automatic air bubble film making machine adopts one-time forming process, which is the company’s extensive absorption of advanced technology at home and abroad, and can continuously produce polyethylene composite bubble (PAD) film through a large number of production practice, development and design on the original ordinary equipment. The machine structure design is scientific, practical and reasonable. Composite polyethylene bubble film (PAD) film unit is one of the company’s main products, which has passed CE certification.
| Model | PL-1000 | PL-1200 | PL-1500 | PL-2000 |
| Screw diameter | φ60mm | φ65mm | φ75mm | φ90mm |
| Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Film width | 1000mm | 1200mm | 1500mm | 2000mm |
| Max. output | 50kg/h | 66kg/h | 80kg/h | 100kg/h |
| Extruder power | 15kw | 15kw | 18.5kw | 37kw |
| Total power | 28kw | 38kw | 50kw | 80kw |
| Power supply | 380V, 50 Hz, 3 phases (customizable) | |||
| Weight | 4000kg | 4200kg | 4500kg | 7000kg |
| Dimensions (L*W*H) | 9*3.5*2.5m | 9.5*3.8*2.5m | 10*4*2.8m | 11.5*4.8*4m |
Packaging and Transportation:
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo ink printer slotter die cutter machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler insert machine, paper tube making machine, flexo ink printing wastewater treatment machine and so on.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning
