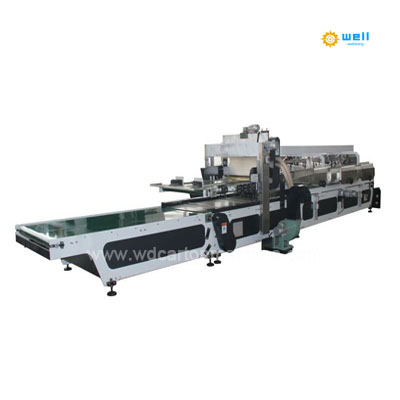

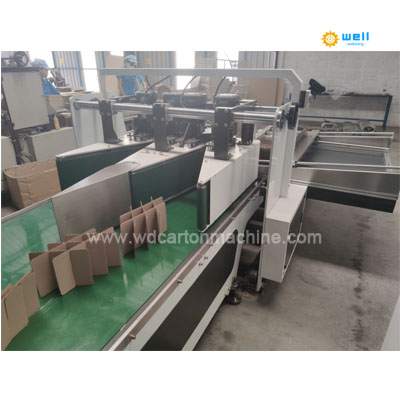

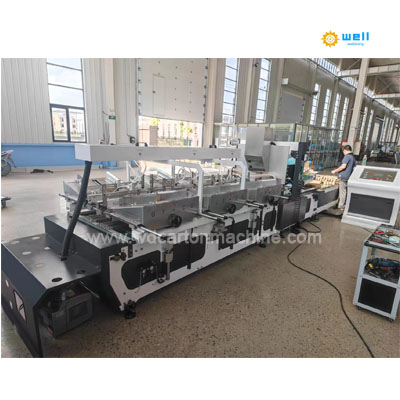

automatic paper cardboard partiton assembly machine

automatic paper cardboard partiton assembly machine - Welldoing trading limited

Short Description:

Certification : ISO9001 ,CE

Application : Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food

Adapt to the object: yogurt, fresh milk, fruit juice drinks

Adapt to the industry: catering, food, gifts, crafts

After-sales service: the warranty period is for all one year

Send email to us Download as PDF

Product Detail

Product Tags

Design feature:
* The longitudinal vacuum suction is adsorbed to the paper
* Transverse pneumatic to the paper, accurate and fast
* Vertical longitudinal ically of the paper frame.
* The lifting of the transverse feed paper supply workbench adopts electric adjustment
* Electrically adjust the height of the transverse lattice panel
* Cross the paper vertically and horizontally

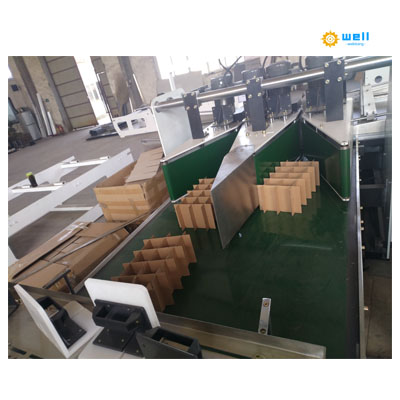

* Suitable for a variety of box partition, block automatic insertion
* Double plex paper, double efficiency
* The comprehensive use of gas control and electric control ensures the advancement of equipment control
* PLC human-machine interface, easy to operate

technical parameter:

Name	Unit	Date
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	210~450
Clapboard Height: H	mm	80~300
Lengthways clapboard distance: D	mm	20~400
Horizontal clapboard distance: C	mm	45-850
Lengthways sheets No.	unit	1-6
Horizontal clapboard No.	unit	1-21
Carton inserting mouth width：F	mm	＞board thickness
Carton thickness:K	mm	1.5~8mm
