China corrugated carton partition assembly equipment

China corrugated carton partition assembly equipment - Welldoing trading limited

Short Description:

Certification : ISO9001 ,CE

Application : Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food

After- Sales Service Provided: Overseas Third-Party Support Available

Automatic Grade: Automatic

Send email to us Download as PDF

Product Detail

Product Tags

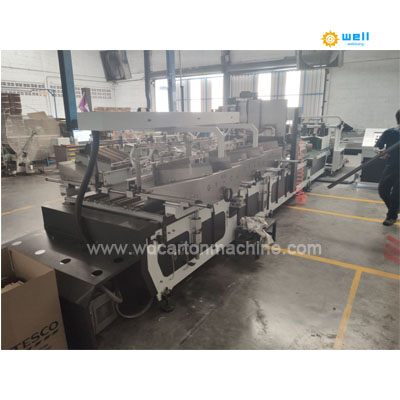

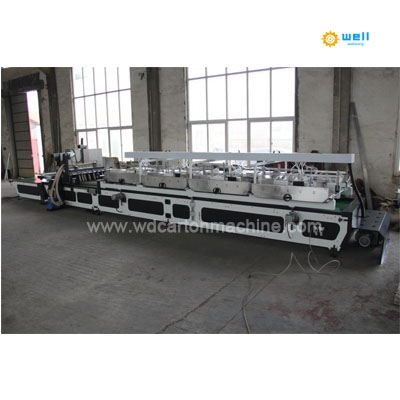

automatic corrugated carton partition assembly machine

design feature:
* The longitudinal vacuum suction is adsorbed to the paper
* Transverse pneumatic to the paper, accurate and fast
* Vertical longitudinal ically of the paper frame
* The lifting of the transverse feed paper supply workbench adopts electric adjustment
* Electrically adjust the height of the transverse lattice panel
* Cross the paper vertically and horizontally
* Suitable for a variety of box partition, block automatic insertion
* Double plex paper, double efficiency
* The comprehensive use of gas control and electric control ensures the advancement of equipment control
* PLC human-machine interface, easy to operate

merit:
* Instead of the traditional manual operation mode, reduce labor costs, environmental protection and energy saving
* Touch screen configuration, simple and intuitive operation
* All parts are made of high-quality raw materials, processed by precision equipment, with a long service life
* Mechanical structure is scientific and advanced, easy to adjust, easy to use and easy to maintain
Special specifications can be customized at customer request
Parameter changes due to machine upgrades are subject to change without notice
Customer preparation:
* Gas source requirements: the working pressure is 0.4-0.8Mpa
* Power supply requirements: 380v 50Hz, three-phase and four-wire system
* Power supply line and gas source line are connected to the operation cabinet and pneumatic main pipeline
* Test plate
* Lubricants and grease for the equipment
* Foundation plane installation of civil works
* Food and accommodation for installation and commissioning personnel, and provide installation workers with installation.

technical parameter:

name	Unit	Date
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	210~450
Clapboard Height: H	mm	80~300
Lengthways clapboard distance: D	mm	20~400
Horizontal clapboard distance: C	mm	45-850
Lengthways sheets No.	unit	1-6
Horizontal clapboard No.	unit	1-21
Carton inserting mouth width：F	mm	＞board thickness
Carton thickness:K	mm	1.5~8mm

transport:
