Edge protector forming Machine | Paper angle board machine - Welldoing trading limited

Short Description:

Delivery Time 45days Packaging Details Stretch film
Product type paper edge protector machine Wide 20-100mm
Thick 2-8mm Control mode Frequency control
Coverage:L*W 22m*3m Total weight 4590kg


Product Detail

Product Tags

Edge protector paper angle board machine  Features:

1. The multi-axis paper holder can take care of discharging multiple paper rolls, and use pneumatic lifting to adjust the height of the paper roll.
2. The angle protector has coaxial transmission, and the transmission parts are quenched and tempered and surface treated.
3. Double cylinder balance pressure regulation. The stroke of the cylinder is adjustable, using frequency conversion, motor, and worm gear reducer.
4. Touch screen and servo system control operation, cutting accuracy is 1000±1MM.
5. The automatic alarm system prompts the fault location to ensure safe operation.

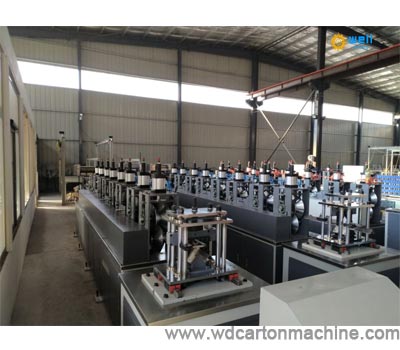

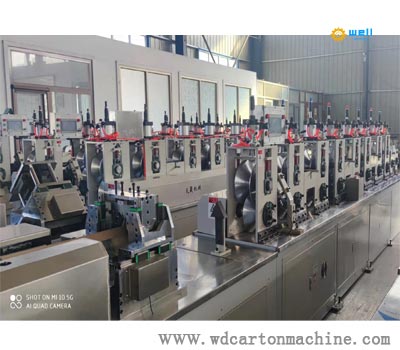

Paper-Angle-Board-Machine-factory Paper-Angle-Board-production-line
automatic-paper-angle-board-machine paper-angle-board-making-machine

technical parameter

Size (mm)
Mainframe size: length * width * height 7000*700*1400(mm)
Area: length * width 22m*3m
Hub height 150mm
Hub diameter 258mm
drive system
Main motor 7.5kw Qiangsu/Yongshun
Main engine speed 1400r/min
Maximum wheel speed 140r/min
Gearbox model WPA/B120 1:10
Transmission chain model 12A
Bearing wanxiang Bearings
Finished Product:
www.wdcartonmachine.com

Our service:

Equipment warranty for one year (cylinder parts warranty for three months,the belt,mold,the blade is not not warranty)

1. equipment installation and commissioning after free repair period is one year.

2.free of charge to the customer technical guidance and training of equipment operation and maintenance of the knowledge.

3.from the use of nealect,vandalism,natural disasters damaged and in need of replacement parts of artificial,material fee will be charged.

4.in the warranty period is over, bassed on the parties intend to continue the development of cooperation,we provide lifetime repair service,only charge for the spare parts,material cost.

www.wdcartonmachine.com

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:cartonmachine.tomwang@aliyun.com

Phone/Wechat/Whatsapp:+86 13303078975
