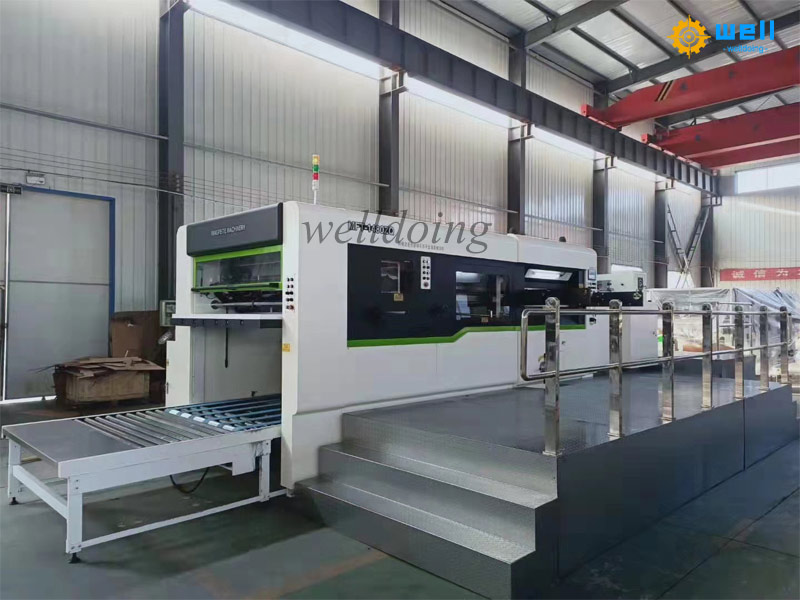

full automatic die cutting machine with stripping
Stripping Section:
The automatic sheet bed die cutting machine adopts the central positioning system, which is automatically clamped, which is fast and convenient for plate alignment.
Equipped with full waste cleaning device, the paper edge of tooth row can be removed, and the production efficiency is greatly improved.
Die cutting part:
The automatic feeding die cutting machine adopts the central positioning system and pneumatic locking plate device for accurate positioning, which greatly increases the work efficiency.
The computer monitoring display system and 3D touch screen operation can instantly display the working conditions of the machine and effectively diagnose the fault location of the machine.
Delivery Section:
Pallet receiving: flexible and free, greatly improving work efficiency; Photoelectric detection device is safe and reliable to ensure fast and stable paper delivery.
Automatic paper receiving without shutdown: the safe photoelectric device ensures that the paper receiving is neat and orderly, which is convenient for transferring the paper stack.
Front Feed Section:
The high-speed precision leading edge paper feeding device adopts the structure of the combination of the air suction box, the paperboard, the supporting bar and the air discharge cylinder to effectively prevent the printing surface from being scratched and scratched.
Variable frequency control and air volume regulation can meet the paper feeding requirements of various corrugated products with a thickness of 1-9mm.
Side Position Part Of Paper Feeding Table:
The patented servo motor control ensures the accurate positioning of the mentally retarded and the flat front edge. A set of side positioning push gauges on the left and right to ensure accurate positioning of the paperboard.
| Type | 1480ZQ | 1650ZQ |
| Max. Paper size | 1480×1080(mm) | 1650×1210(mm) |
| Min. Paper size | 550×480(mm) | 650×550(mm) |
| Max. Cutting size | 1450×1050(mm) | 1620×1190(mm) |
| Max. Cutting pressure | 300×104N | 300×104N |
| Stock range | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g |
| Cutting precision | ±0.5(mm) | ±0.5(mm) |
| Max. Mechanical speed | 4200s/h | 3600s/h |
| Pressure adjusting range | ±1(mm) | ±1(mm) |
| Min. Gripper Margin | Gripper ≥8(mm) | Gripper ≥8(mm) |
| Total Power | 32.32kw | 32.32kw |
| Machine dimension(include the work platform) | 8591×4650×2652(mm) | 9119×4820×2727(mm) |
| Machine dimension(exclude the work platform) | 8230×2596×2652(mm) | 8556×2805×2727(mm) |
| Gripper/needle numbers/each | 11 | 12 |
| Total Weight | ￣23.5t | ￣27.5t |
Products Advantages:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory
Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.
