high production tissue paper tube making machine - Welldoing trading limited

Short Description:

Product type:  paper core machine ,paper tube making machine

Power: 15 KW

Certification :iso9001

Warranty : 1 Year

Place of Origin :china

Supply Ability: 5 set permonth

Delivery Terms:40-50 days


Product Detail

Product Tags

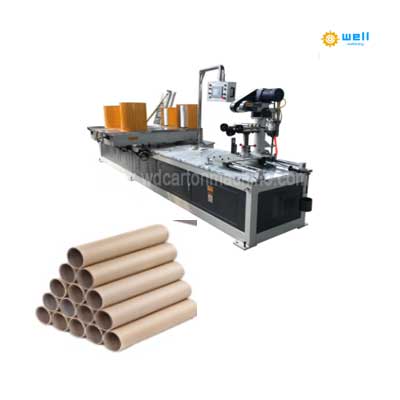

high production tissue paper tube making machine:


We are a foreign trade sales manufacturer integrated company, we have specialized in doing paper tube making machine for many years, for example :tissue paper tube making machine,kraft paper tube making machine,fireworks paper tube making machine, big diameter kraft paper tube machine,toliet tissue spiral paper tube machine and related products of paper tube cutting machine, paper slitter rewinder machine,paper angle board machine, we have a professional technical team, products exported to Southeast Asia and Europe and other countries

Delivery Time 45days Packaging Details Stretch film
Product type Paper Core Machine,Core Tube Making Machine Processing type Paper tube making machine
Power(w) 15kw Warranty 1 Year
Name paper tube making machine,Paper Pipe Tube Cutting Machine Type paper tube making machine
diameter 30-200(mm) Thickness 2-15(mm)

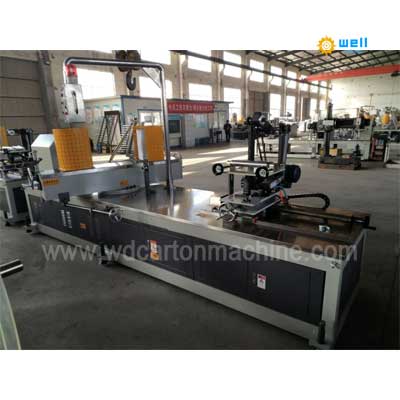

china-paper-tube-making-machine spiral-paper-core-tube-making-machine

paper-tube-making-machine-for-adhesive-tape china-paper-tube-making-machine

Making paper tube process:

paper-tube-making-machine-china



Paper tube machine technical parameters:



Model Model 200 Four-Head Tube Machine
Technical parameter Control system
paper layer 3-25layers Frequency converter ENERGY
Inner diameter of tube 30-200(mm) Major Executing Devices (Contactors, etc.) CHINT
Thickness of tube 2-15(mm) Button Siemens
Speed 0-20(m/min) Emergency stop Siemens
Fixed length mode Light Control (Infrared) knob Siemens
Winding head Four nose Signal element (photoelectric switch, etc.) hugong
Cutting type Single knife cutting Pneumatic components SOUPAI/TIANAO
Fixing Method of Core Rolling Die Flange tightening Synchronous control Pneumatic
Gluing way Double sided glue Fixed length mode Proximity switch
control mode Frequency control PLC controller WEIKONG
Input voltage 380V/220V Interface KUNLUN
Number of operators 1-3people Button stop Jiangyin Changjiang Brand
Dimensions (mm) Cylinder Al DEK
Main machine:L*W*H 5200mm*1900mm*2100mm Solenoid valve Al DEK
Coverage: L*W 20000mm*9000mm Configuration device
Hub diameter 294mm Paper holder type Fixed hoisting paper holder
Hub height 360mm/430mm Glue supply Automatic cycle gluing, heated glue tank
Host weight 3050kg Paper tape for lubricating oil Automatic lubrication stainless steel basin
Total weight 4060kg Tension adjust Mechanical adjustment
Drive system Bottom and Top Paper Device Stainless steel bottom paper holder, face paper basin
Main power 15kw shanghaiqiangsu/hengshui yongshun Guide wheel Stainless steel pipe
Main engine speed 1400r/min Host Mesa Stainless steel plate
Max. speed of hub 47r/min Coil mandrel 1
Hub Output Torque 8500N.m Coil belt 2
Reducer Model WPO155 hangzhou xiaoshan/yiding Blanking rack Stainless steel automatic blanking
Drive Chain Type 12A*2 Application tools Neihexagonal 1 set
Hub drive Four wheel drive
Cutter motor 0.4kw OTG from shanghai
Transmission mode chain
Bearing wanxiang



our-transport

paper-tube-clients



Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.



FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
