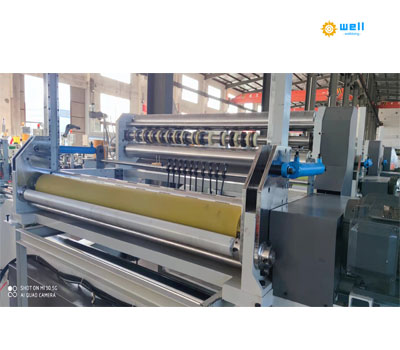

Kraft paper slitting and rewinding machine
Model | WD-1600C High speed cutting machine | ||
Technical parameter | Synchronization controller | ||
Parent roll width | 1600(mm) | Major Executing Devices (Contactors, etc.) | CHINT |
Parent roll diameter | 1200(mm) | Button | Siemens |
Emergency stop | Siemens | ||
Rewind diameter | 1200(mm) | knob | Siemens |
Slit width | >35(mm) | Signal elements (proximity switches, etc.) | Hugong |
Slitting capability | 80-600g | Cylinder element | CEHNGDI/SUOPAI/TIANAO |
The main power | 11kw | Hydraulic system | Special-purpose |
Paper on the way | Hydraulic Shaftless Support | Frequency converter | ENERGY |
Number of cutter | 18付18pcs | Configuration device | |
Winding way | Gas up outside the closed | Charging | Hydraulic lift system Electric clamping |
Paper down the way | Hydraulic blanking | Blanking | Hydraulic blanking |
Speed of adjust and control | Frequency control | Adjusting knife mode | Manual adjustment |
Speed of Slitting | 1-300(m/min) | Tension regulation | Pneumatic brake |
Power input | 380V 220V | Rewinding of Single Air Rising Shaft | |
Operator | 1 | Double-knife slitting, thickened blade |
