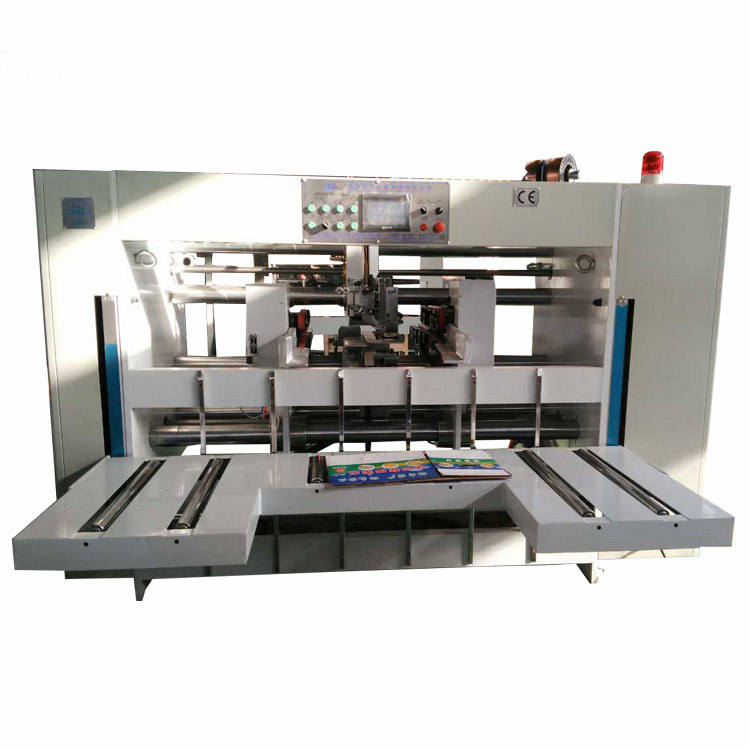

 Semi-automatic stitching machine main part and function introduction :

1. Schneider france original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage
2 box stitching machine wenlun touch screen ooperation the parameter ( nail distance, nail unmber,nail types,tial gate ) change convinently
3 The box stitching machine  control system use the omron plc control system
4..back electrical baffle use the stepper motor driven ,size accurate ,size changing is more convinent
5.The contactor in the control box adopt simense brand
5 .Display and circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
6. Bottom mould and blade adopt japan tungsten steel
7. Whole stiching head adopt special steel to make , computer digital processed
8 .The box stitching machine have single nail  ,double nail, strenght nail

1.Main Technical paramteters for carton box stapler machine

High speed box stitching machine  is the specified machine used in the last process in corrugated carton box making ,we can do manual type carton stapler  , semi auto type carton stapler  and fully auto type carton stapler .



model double head box stitching machine Can do single nail , double nail and strengthen nail complete in one time , can be suitable for different kinds of customer requirements of stitching

Three design stapler machine  we have

Type Characters Pictures

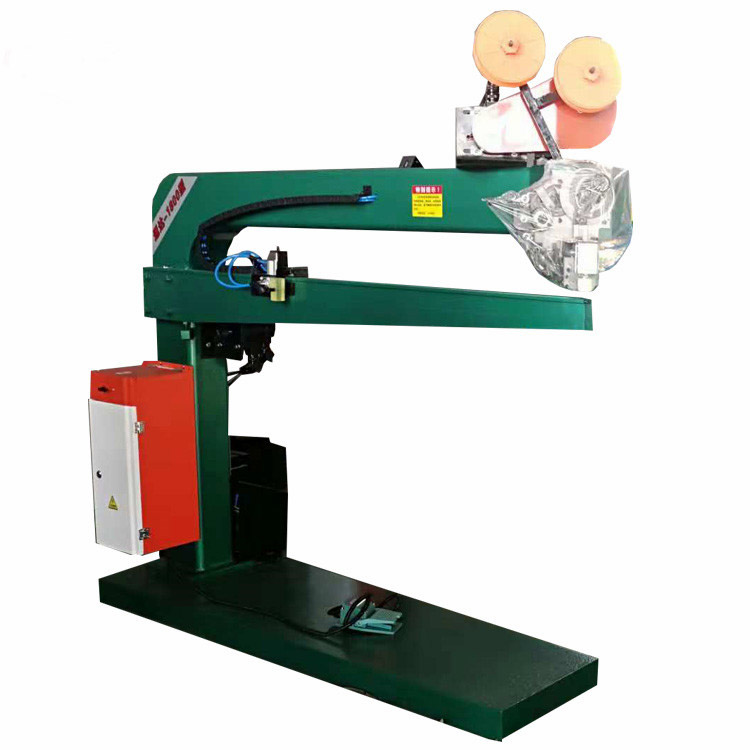

Manual carton stapler 1)Speed 150-450nail/min
2)wire proper : 16#17#.18#
3) power : 220volt 800w
 https://www.wdcartonmachine.com/nail-box-machine-product/
Semi auto type carton stapler 1)Working speed : 500 nails/min
2)Nail distance :30-120mm(adjustable)          3)Table lift height :900mm
4)Machine size :2.8*2.7*2m
 https://www.wdcartonmachine.com/nail-box-machine-product/
Fully auto carton stitcher 1) Fully computer control ,saimple operation , it can remember 1000 orders
2)3-5minuts adjust the size
3)Three function in this machine , gluing , stapler or glue and stapler at the same time
 https://www.wdcartonmachine.com/automatic-carton-folding-gluing-stitching-machine-product/

Stitcher machine description
Our Corrugated carton box stitching machine use the servo motor and drive emergency stop ,emergency start advantage instead of the clutch ,increase the machine accurate and use life .

2.have speed adjust function 150-450stapler /min speed adjust ,so not control worker skill .
3.Machine head structure easy ,and convenience maintain ,knives use the alloy steel  connect bar use the bear connect ,reduce wear ,and increase use life .
4.It can do single nail , double nail and strengthen nail complete in one time , can be suitable for different kinds of customer requirements of stitching .
5.Size  600mm,1200mm,1400mm,1600mm,1800mm,2000mm
6.Speed 150-450nail/min
6.wire proper : 16#17#.18#
7. power : 220volt 800w

Model Stapling speed Stapling thickness Stretching length of the loading arm Exterioe demension Weight
DX-600 250s/min 3/5 ply 600mm 1100x600x1760 300kg
DX-900 250s/min 3/5/7ply 900mm 1400x600x1760 400kg
DX-1200 250s/min 3/5/7ply 1200mm 1700x700x1820 600kg
DX-1400 250s/min 3/5/7ply 1400mm 1900x700x1820 800kg
DX-1800 250s/min 3/5/7ply 1800mm 2300x700x1820 1000kg

1.Stitching machines function
Stitching the corrugated cardboard to finished corrugated box

2.Two design for semi auto Stitching machines corrugated box
Design one - single piece stitching machine

Characters :
1)Imports of dual-servo-driven precision , mechanical transmission part of the reduction can effectively reduce the mechanical failture rate .
2)Touch screen operation , parameters (Screw pitch , the number of nails , nail species , tailgate) transformation convenient .
3)Siemens PLC control system for the hole control system
4)After the electric tailgate , the use of stepper motor drive, accurate size , transform size is more concenient
5)Bottom die , tungsten steel blade made by Japan (wear)
6)Nail line alarm after use (To avoild leakage ariting without nail line play , bad for small nail)
7)Mechanical speed :500nails/min

Feature:model double head box stitching machine for corrogated cardboard carton box

1 A dual-purpose machine for single forming carton, double forming carton, irregular carton.
2. The size is full electrically controlled and it can be changed the size in 2-3min
3. The strengthened, single, double nailing can be finished in a lump.
4.. Auto counting, after stacked, it will be auto packing.
5. Available for large carton, and nail-feeding is high speed and high efficiency
6. Nail from is free adjustable between 30-120mm, set by computer
7. It can do special box without cover
Use and Characteristics:servo control stitching machine for corrogated cardboard carton box
1. It can nail single nail double nail, strengthen nail completed in one-time, can be suitable for different kinds of customer requirement of nail.
2. It can be changed size quickly in one time, can be operated easily and not had to experience.
3. Paper feeding section can automatic counting, send after the bundle into the bundle.
4. It is man-machine interface control for convenient operation.
5.Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99)
servo control stitching machine for corrogated cardboard carton box

Model Stapling Speed Stapling Thickness Exterior Dimension Weight
DX-600 250 s/min 3/5   ply 1100x600x1760 300kg
DX-900 250 s/min 3/5/7  ply 1400x600x1760 400kg
DX-1200 250 s/min 3/5/7  ply 1700x700x1820 600kg
DX-1400 250 s/min 3/5/7  ply 1900x700x1820 800kg
DX-1800 250 s/min 3/5/7  ply 2300x700x1820 1000kg

High speed automatic stitching machine

Technical parameter :

Model and parameter SDJ-2400 SDJ-3000
Max corrugated paperboard(A+B)x 2 (mm) 4800 6000
Min. corrugated paperboard(A+B)x 2 (mm) 1060 1060
Max paperboard length  mm 2850 2850
Min. paperboard length  mm 350 350
Max. paperboard width  mm 1200 1500
Min. paperboard width mm 180 180
Min. paperboard height(C+D+C) mm 400 400
Nail distance mm 30-120 30-120
Number of nails. 1-99 1-99
Nails speed   nails/min 300 300
Max (L+W)*2 2460mm Power 4HP
Min (L+W)*2 606mm Length 2800mm
Max (L+W)*2 2460mm width 2600mm
Min (L+W)*2 606mm Weight 2000kg
Height of feeder 900mm Stitching pitch 30-100mm
Speed 400/stitches/min Number of stitching 1-99 stitches

The main function and components
Can nail a single nail, two nail,strengthen nail one time.
One minute quick change size. Easy operation without experience.
Paper feeder can count automatically. Tied into buldles sent.
Omron PLC control system.
Chint contacts.
Taiwan electromagnetic clutch,
All switch control box using domestic brands.
From Stapling to the semi-finished products to finished goods, only two people is OK. Simple operation and reduced salary.

Automatic accounting after the segment, the number of sheets can do a good job of setting the number of products(1-99) sub-stack convey is not sent to client.

It can be covered nails whether with covering or without covering.

The use of touch-screen control, nail away from the touch screen can be set directly facilitate the operation.
