The Automatic carton printing die cutting slotting machine is divided into mid range and different types of products, and the working principle is also different.

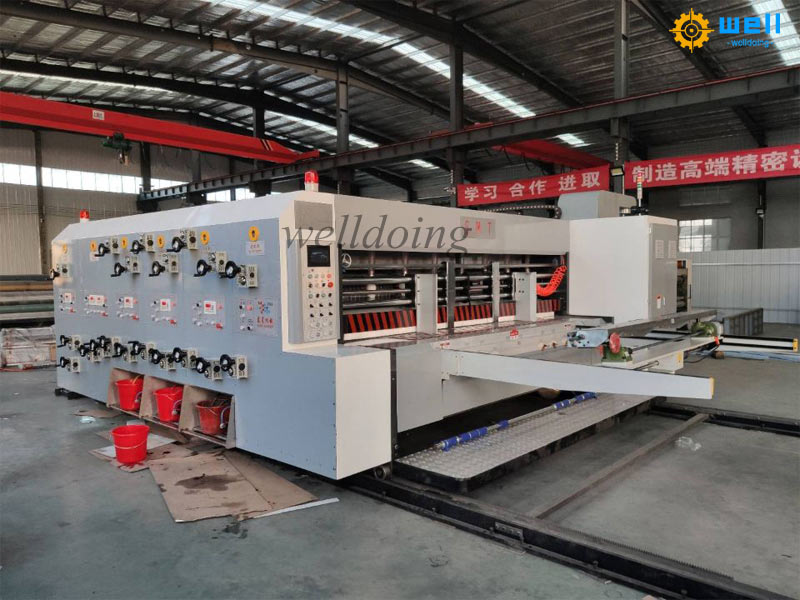

automatic flexo printing slotting die cutting machine

Working principle of mid range automatic ink printing soltting die cutting machine

【 Working principle of mid range automatic ink printing soltting die cutting machine 】
The working principle of the mid range of the full automatic flexo printer slotter die cutter machine:

This type of machine adopts a rear kick type paper feeding (or front edge adsorption roller friction method), and uses the paper pressure wheels of each unit to transport corrugated paper
Board; During the cardboard transportation process, the surface paper of the cardboard comes into contact with the printing plate on the printing roller, and after printing the image and text through the pressure of the printing roller and the printing plate,
Entering the work of pressing, grooving, and die-cutting units, the final shape of the cardboard box is not joined.
2. Name and function of each part of the paper feeding unit:
The paper feeding unit mainly consists of: front, rear, left, and right baffles, push plates, suction devices, dust removal brushes, and upper and lower paper feeding rollers.
3. Name and function of each part of the printing unit:
The printing unit mainly consists of rubber rollers, anilox rollers, printing rollers, bottom pressure rollers, paper pressure rollers, and ink conveying devices.
4. Name and function of each part of the slotting unit:
The slotting unit mainly consists of pre pressing wire wheel, pressing wire wheel, and slotting cutter wheel.
5. Name and function of each part of the die-cutting unit:
The die-cutting unit mainly consists of: template roller, anvil cushion roller, grinding device, and paper pressing wheel.
6. Names and functions of each part of the stacking unit:
The stacking unit mainly consists of a paper receiving arm, a conveying platform, and a paper receiving platform.
