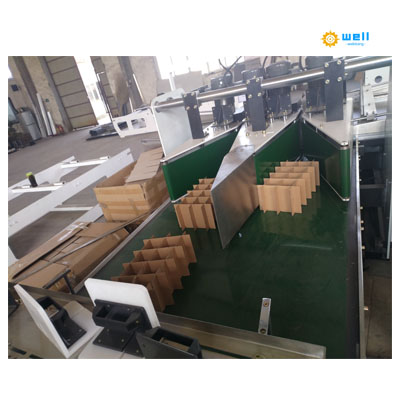

automatic partition assembly machine

Parts name 数量
Qty 备注
Remarks
1 自动插格机
Automatic inserting machine 1台/1unit 格板输出方式：双工位；格板组合形式：十字交叉
Inserting : double-position;
Sheets Composing: Decussation
2 输纸部
Sheet Delivery 1台/
1 unit
3 气动系统
Pneumatic System 1套/
1 set 气源客户自备
customer prepare air pump
4 电器系统
Electric System 1套/
1 set PLC、人机界面、伺服控制
PLC、human machine interface 、
Servo control

配置单Specification List
名称 Name 品牌Brand
伺服电机 Servo Motor 施耐德Schneider
PLC PLC 施耐德Schneider
伺服驱动器 Servo Driver 施耐德Schneider
变频器 Inverter 施耐德Schneider
触摸屏 Touch Screen 施耐德Schneider
交流接触器 AC Contactor 施耐德Schneider
减速机 Reduction box APEX
风机 Draught fan 九洲普惠Popula
真空泵 Vacuum pump EURVOAC
接近开关 Proximity switch SICK
牵引辊电机 Roller motor 上海德东Dedong Electric
插板气缸 Cylinder 亚德客AirTAC
电磁阀 Solenoid valve 爱普泰F-tec
流量控制阀 Flow control valve 神驰SNS
气源处理元件 Clean air conponent 亚德客AirTAC
油水分离器 Oil-water separator 神驰SNS
结构特点Structure Character

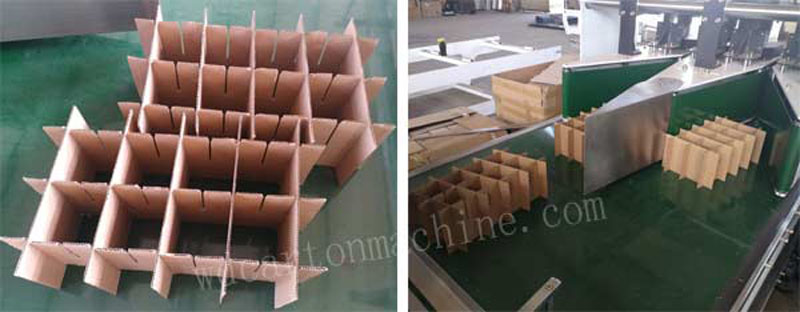

*纵、横向同时给纸进行十字交叉插格
* Lengthways and horizontal sheets do decussation inserting.
*适合各种纸箱隔板、格挡的自动化插编
* Automatic inserting each kinds clapboard and block
*取代传统手工操作模式，双工位出纸
* Instead of manual， two sets per time.
型号 Model 外形尺寸（长×宽×高 m 含输纸机）
Dimension(L x W x H m include sheet delivery ) 功率 (kw)
Total power
CGJ600-3L-JG100 7.9×2.0×2.1 6.8
技术参数Technology parameter
格板参数表Clapboard List

名 称/Name 单位/Unit 数据/Data
横向插入宽度/ Horizontal inserting width: A mm 120~900
纵向给纸长度/ Lengthways sheets length: B mm 210~600
格板高度/Clapboard Height: C mm 80~400
横向纸板间距/ Horizontal clapboard distance: D mm 20~500
纵向纸板间距/Lengthways clapboard distance:E mm 45-800
纵向格板数量/ Lengthways sheets No. 片 1-6
横向格板数量/ Horizontal clapboard No. 片 1-21
纸板插口宽度/ Carton inserting mouth width：F mm ＞纸板厚度 ＞board thickness
纸板厚度 /Carton thickness:G mm 1.5~8mm
CGJ600-3L-JG100参数表
※ 特殊规格可依照客户要求定制
※ Remark: Special size need confirm before confirm the order
※ 因本厂对机器升级所造成的参数变动,恕不另行通知
※ Due to upgrade, the changes in the parameters of the machine without noti ce.
试车用格板应符合下列要求：
The testing partition board should meet the following requirements
* 格板成型方式：模切成型。
Partition board molding: die cutting molding
※ shall vest in manufacturer of Dongguang County Guangyang Carton Machinery Factory
客户准备Customer Prepare
1、气源要求： 工作压力0.4-0.8Mpa
Air pressure: Work normal 0.4-0.8Mpa
2、电源要求：380v 50Hz 三相四线制
Power Requirements: 380v 50Hz Three-phase four-wire syste
3、电源线、气源线管接至操作柜及气动主管道上
Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.
4、试车用格板
Test machine use die-cutting-clapboard
5、设备用润滑油、润滑脂
Machine use lubricate oil and grease
6、地基平面安装土建工程
Foundation work.
