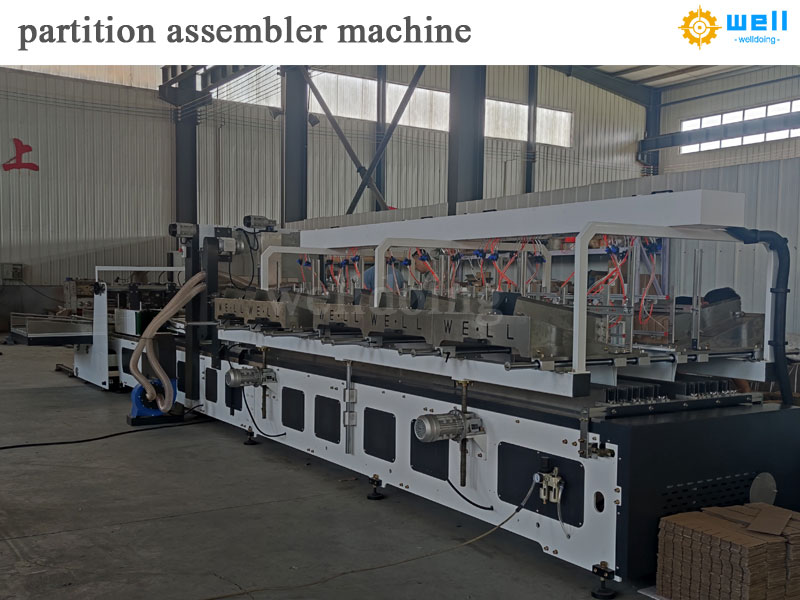

High speed automatic partition assembler machinery

partition assembler machine is a device used to insert partitions or grids into packaging materials such as cardboard boxes and cartons, mainly used in the packaging industry.

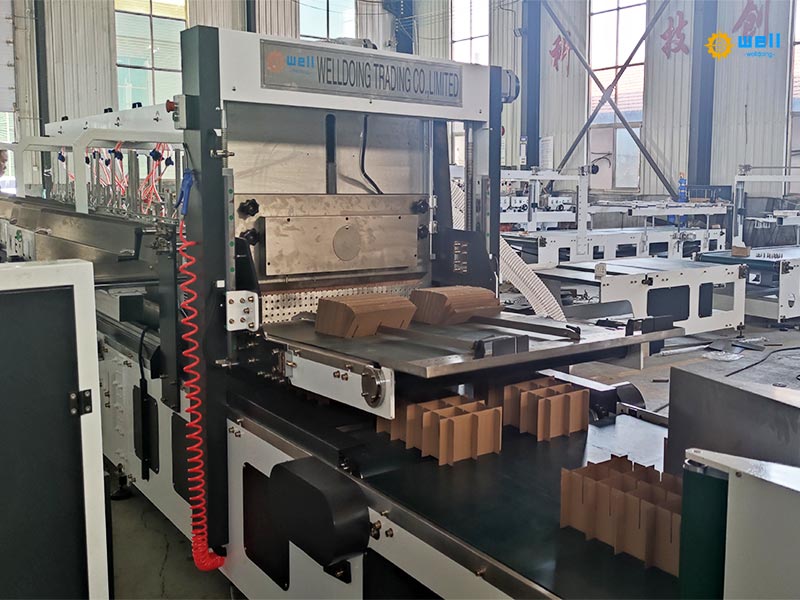

High speed corrugated cardboard partition assembler machine

Technical field: Belonging to the field of packaging production equipment technology, used for making compartment packaging inside boxes.

Structural composition: including frame, power system, sprocket transmission system, horizontal plate grid insertion mechanism, and vertical plate grid insertion mechanism. Two sets of sprocket transmission systems are symmetrically installed under the frame, with multiple sets of grid frames on the chains. Multiple horizontal and vertical grid mechanisms are installed at the front and rear ends of the frame.

Working principle: The cardboard is pressed down from the discharge port to the corresponding position on the partition frame of the High speed automatic partition assembler machine through cylinder control, achieving automated production. The power system adopts a reduction motor and a parallel divider to form a stepped transmission, which is suitable for the corresponding insertion of paper grids.

www.wdcartonmachine.com

www.wdcartonmachine.com www.wdcartonmachine.com www.wdcartonmachine.com

www.wdcartonmachine.com

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:cartonmachine.tomwang@aliyun.com

Phone/Wechat/Whatsapp:+86 13303078975


Post time: Apr-03-2025
