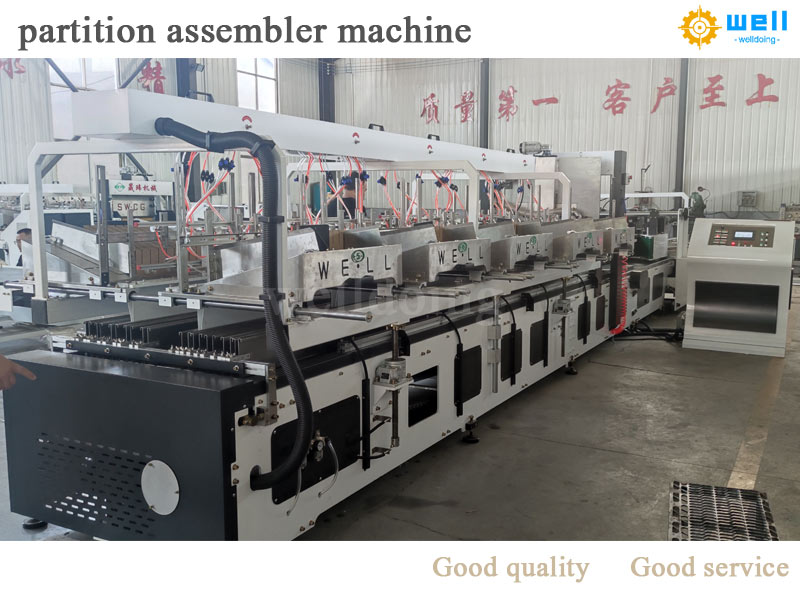

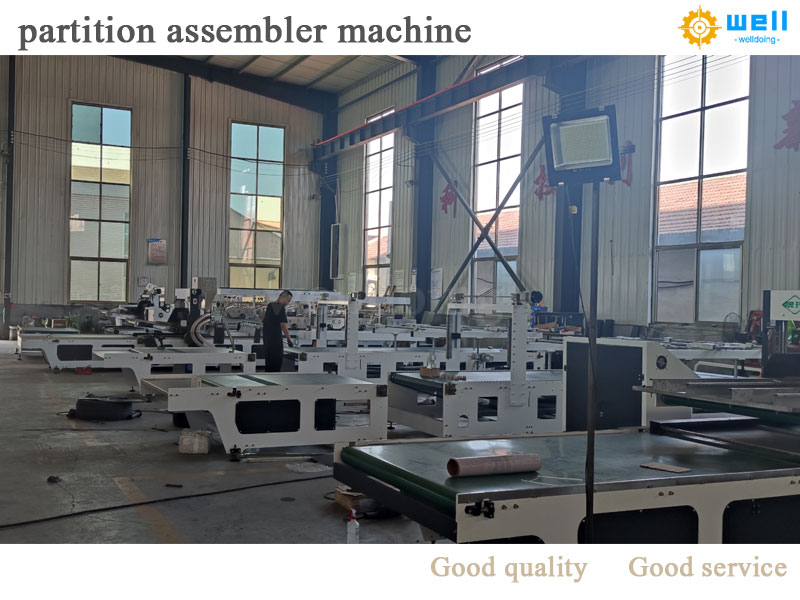

The working principle of high-speed Partition assembly machine mainly includes the following aspects:

Paper conveying and positioning

Vertical cardboard conveying: Vertical cardboard enters the guide groove through the feeding groove, and the width design of the guide groove allows the cardboard to move smoothly with low friction. At one end of the guide groove near the transverse grid device, a positioning fine steel wire is installed to ensure that the cardboard can stand upright when moved to this position for subsequent grid insertion operations.

Horizontal cardboard conveying: Horizontal cardboard is moved to the designated position by the conveyor belt through the feeding chute and waits for horizontal Automatic partition assembly machine operation.

Grid insertion operation

Vertical slot insertion: When the vertical card is moved to the designated position, the vertical card slot insertion plate is pushed by the cylinder to insert the vertical card into the slot of the horizontal card, completing the vertical slot insertion.

Horizontal grid insertion: The horizontal card grid insertion board is driven by a servo motor and achieves fast horizontal grid insertion action through a linkage mechanism, inserting the horizontal card into the slot of the vertical card.

Overall workflow

The paper enters the corrugated carton partition assembly machine from its respective feeding chute, and after being conveyed and positioned, the longitudinal and transverse grid insertion devices perform grid insertion operations in sequence. The completed product is output through the conveyor belt. The entire process is precisely controlled by PLC and other control systems for timing and action, ensuring the accuracy and efficiency of grid insertion.
