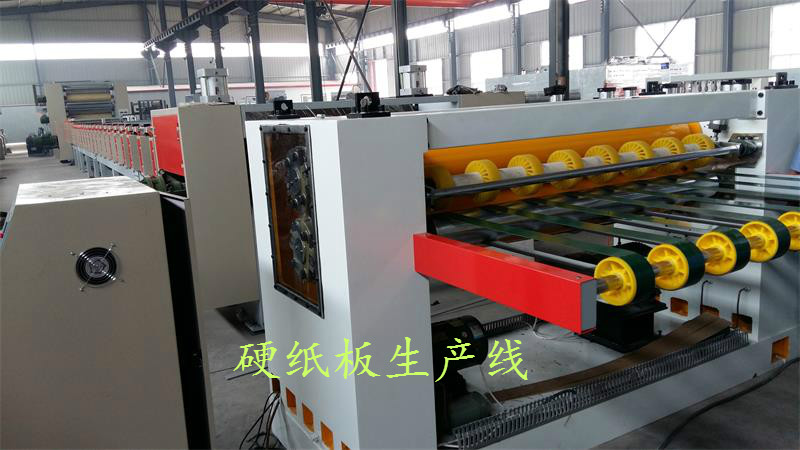

High speed hardboard production line

www.wdcartonmachine.com

The Hardboard production line mainly produces packaging cardboard for cigarettes, alcohol, high-end gift boxes, and industrial composite cardboard. Can produce 1200-2800 type three layer, four layer, and five layer composite cardboard. The equipment is divided into overpass, edge alignment, preheating, gluing, compaction, drying, cooling, driving, slitting, cross cutting, paper receiving, and other equipment. Next, we will introduce the main purposes and material parameters of each device separately.

Paper receiving mechanism



The paper receiving mechanism can be divided into many forms, and its functions are also different

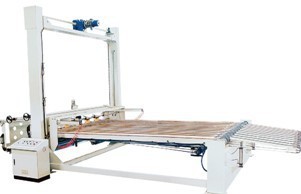

1. The gantry paper receiving mechanism uses hydraulic support arms to form a conveying channel and stack cardboard on the paper receiving platform. As the cardboard piles up, the hydraulic support arms rise to achieve the stacking effect. When the stacking reaches a certain height, it can be directly pulled away by a forklift. When changing the pallet, the brake system will temporarily stop the paper output. The gantry paper collection is convenient and fast, which can greatly reduce manual labor.

www.wdcartonmachine.com

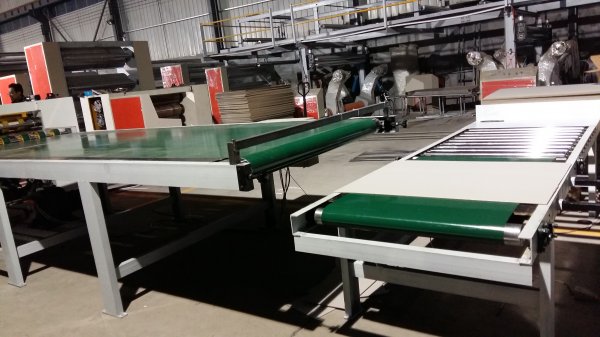

2.A right-angle output paper receiving mechanism. After the cardboard is cut horizontally, it is vertically output through the paper feeding platform, and then horizontally output. It is manually stacked and transported away. The right-angle output paper receiving platform has low cost and is easy to operate.



www.wdcartonmachine.com

3. The automatic flipping paper receiving mechanism utilizes hydraulic lifting and flipping, and the flipping frequency can be set to make the cardboard present a positive and negative stacking, which is beneficial for subsequent processing. The cardboard is stacked after flipping, and can be directly pulled away by a small car after reaching a height. The automatic flipping paper receiving mechanism is beneficial for subsequent processing programs, saving labor for subsequent processing and also saving labor for paper receiving personnel.

www.wdcartonmachine.com

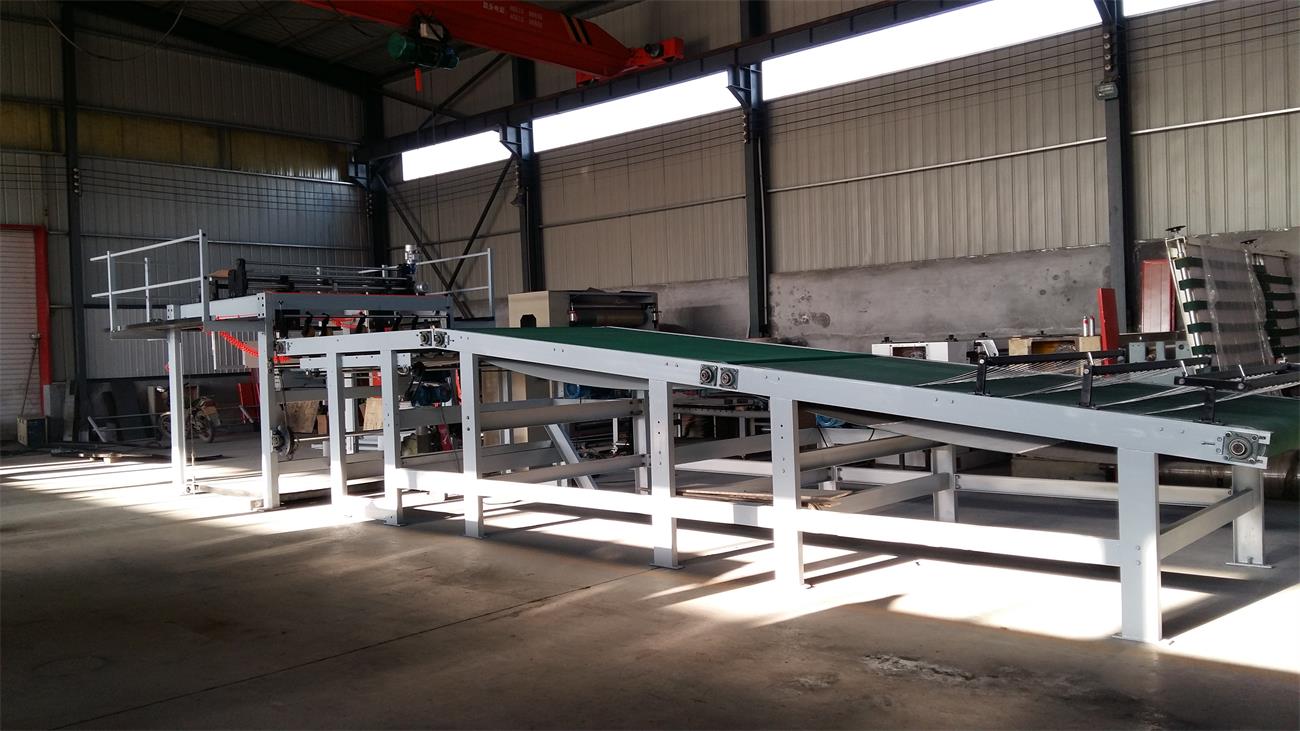

4.Hanging basket paper receiving

www.wdcartonmachine.com
