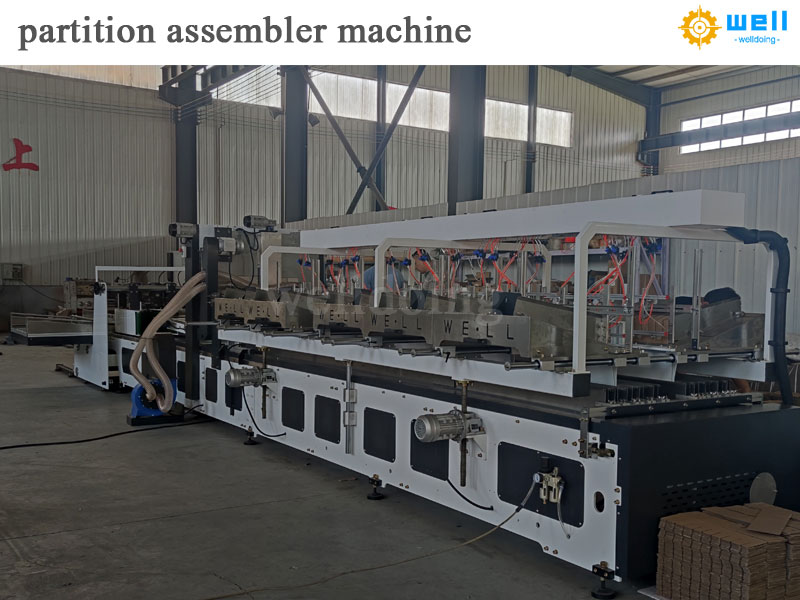

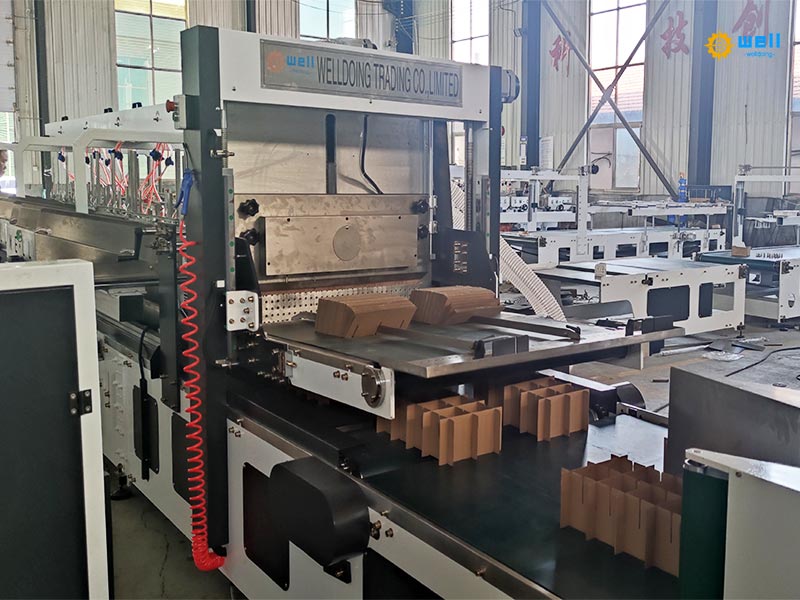

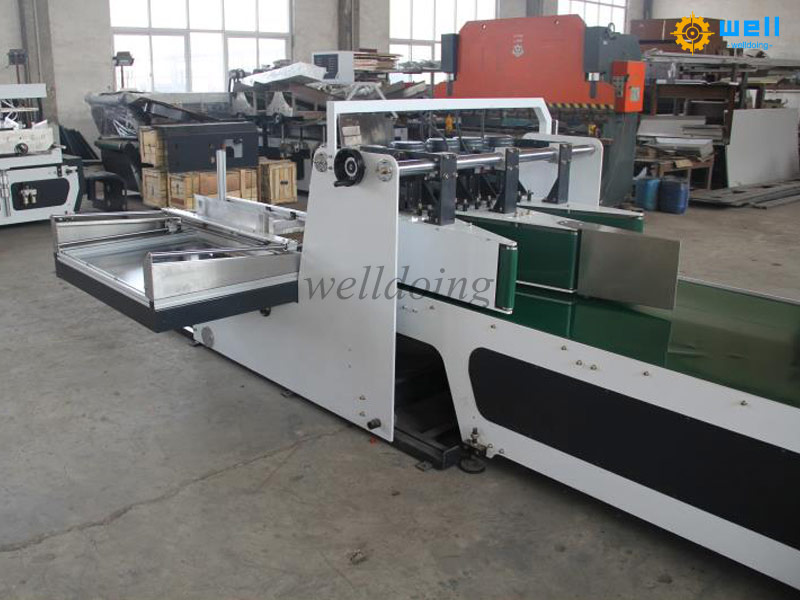

Automatic partition assembly inserter machine is an automated equipment mainly used to quickly and accurately insert components into circuit boards or other materials according to preset patterns. This type of device typically consists of the following core components and working principles:

Feeding system: The partition assembler machine is equipped with an efficient feeding system that ensures components are supplied to the insertion position as needed. The feeding system may include vibrating discs, hoppers, or other automated feeding devices to accommodate components of different shapes and sizes.

Positioning system: The positioning system is responsible for accurately controlling the insertion position of components. This is usually achieved through the use of high-precision sensors and control software to ensure that each insertion is in the correct position.

Insertion head: The insertion head of the automatic partition assembler machine  is a component that performs the actual insertion action and can be pneumatic or servo driven. The servo driven insertion head provides higher precision and repeatability, enabling insertion within a 360 degree range and adapting to complex insertion angle requirements.

Control system: Modern automatic partition assembly machines are typically equipped with advanced control systems such as programmable logic controllers (PLCs) and touch screen interfaces, which allow operators to set complex programs, achieve automated production, and monitor the operating status of the equipment.

Motion control: The motion control system of the high-speed partition assembler insertion machine is responsible for coordinating feeding, positioning, and insertion actions to ensure accuracy and stability during high-speed operation. The optimization of motion control systems can significantly improve the production efficiency and quality of equipment.

Detection and feedback: In order to ensure insertion quality, high-speed partition assembler machines may be equipped with vision systems or other sensors to detect the insertion status of components and provide real-time feedback. This helps to automatically correct deviations or trigger alarms when errors are detected.

The design and working principle of high-speed partition assembler machines aim to maximize production efficiency while maintaining or improving product quality. By integrating the latest automation technology and intelligent control systems, high-speed partition assembly machines can adapt to changing production needs and play a key role in fields such as electronic component manufacturing.
