The Semi automatic carton stitching machine not only has good production efficiency, but also has uniform and beautiful nail spacing. The main difference between fully automatic and semi-automatic box stitching machines is the automation of paper feeding. The paper feeding of the fully automatic stitching machine is carried out by the paper feeding device, which folds the cardboard and feeds it into the stitching box for stitching; The semi-automatic box stitching machine is manually folded and fed with cardboard. The semi-automatic box stitching machine is generally a horizontal structure, divided into two types: single piece and double piece box stitching machines. The structure of the double piece box stitching machine is relatively complex and has full functions, which can stitch single piece cardboard boxes and two sheet formed cardboard boxes.

The cardboard conveying mechanism consists of four transmission rubber wheels and paper feeding rubber wheels, a rear baffle adjustment device, left and right baffles, and a transmission mechanism. An electric adjustment device is used to adjust the gap of the paper feeding wheel, suitable for various types and thicknesses of cardboard. The stitch head composite transmission design combines the advantages of gearbox and chain transmission, making it easy to repair and maintain, with low failure rate and efficient transmission.

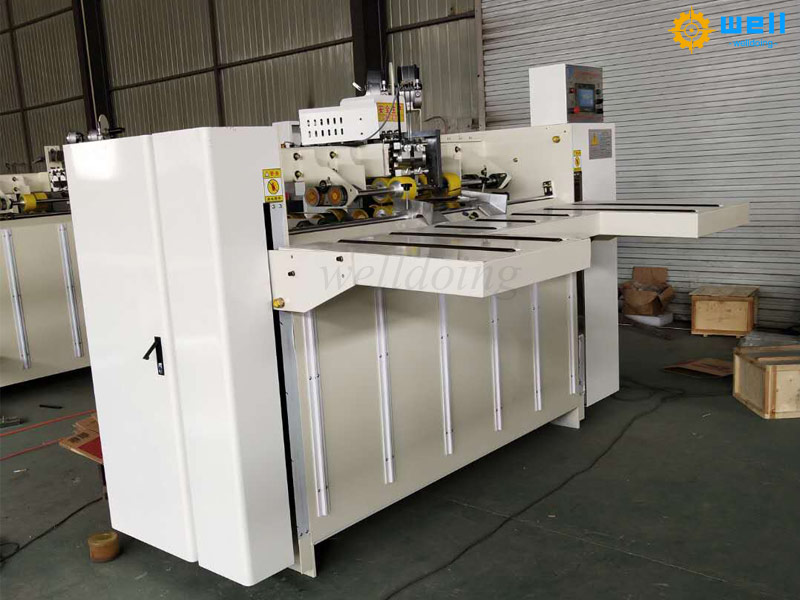

semi automatic corrugated box stitching machine

Preparation process before stitching the box: Adjust the position of the main baffle according to the shaking cover of the cardboard box; Adjust the position of the left and right baffles as well as the position of the upper and lower nail heads. Be careful not to clamp the left and right baffles too tightly, and ensure smooth insertion and extraction of the cardboard; After the mechanical adjustment is completed, set the touch screen computer: cardboard box height=original cardboard box height -40mm. Number of nails in the cardboard box. Whether to strengthen the nails or not. After selecting single or double pieces, all the above settings are completed, the box can be nailed.

If you are also interested in this machine,please don’t hesitate to contact us:
