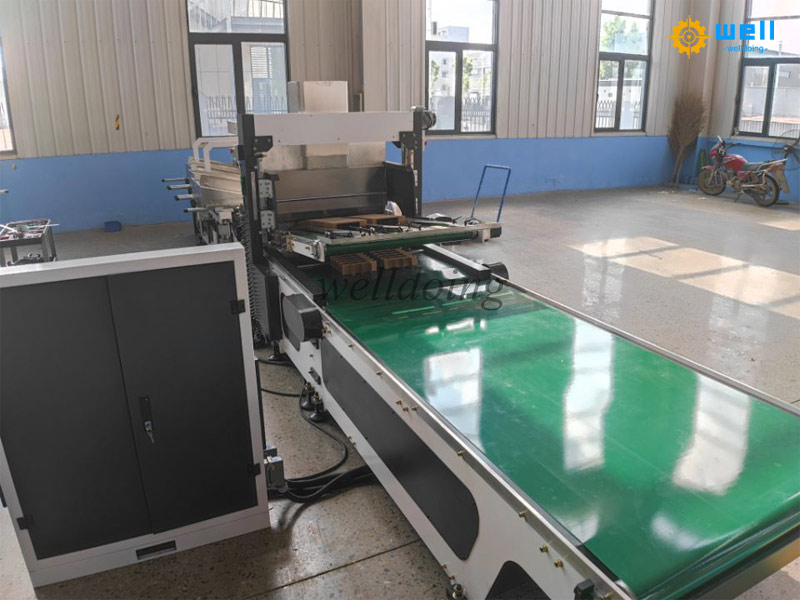

What are the main technical elements of high-speed automatic partition assembler inserter machine?

1. The high-speed partition assembler inserter machine includes a horizontal grid conveying device, a longitudinal grid conveying device and a pressing device for inserting the horizontal grid and the longitudinal grid. The utility model is characterized in that the conveying device of the high-speed partition assembler inserter machine comprises a first conveyor belt with holes or air permeability. The inner side of the first conveyor belt is provided with a bearing plate. The horizontal grid is stacked on the first conveyor belt. A vacuum box is fixed under the bearing plate. The air inlet on the vacuum box is connected with the vacuum machine. The bearing plate is uniformly provided with a plurality of through holes.

automatic partition assemble suppliers china

2. Because the first conveyor belt has holes or the material itself is breathable, the bottom card will be pushed to the next station to avoid supply interruption. In addition, the transverse or longitudinal clamping conveyor also includes a pair of reverse rotating traction rollers, a feeding baffle arranged above the first conveyor belt, a turning plate and a clamping guide groove under the turning plate.
