Product Description

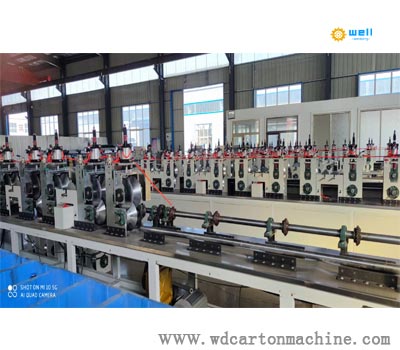

1) automatic paper edge protector machine is a kind of machine that specializes in the production of paper corner. It is generally composed of paper guide, gluing, forming, cutting, automatic stacking and other devices and some accessories, which can complete all the processes of paper corner manufacturing.

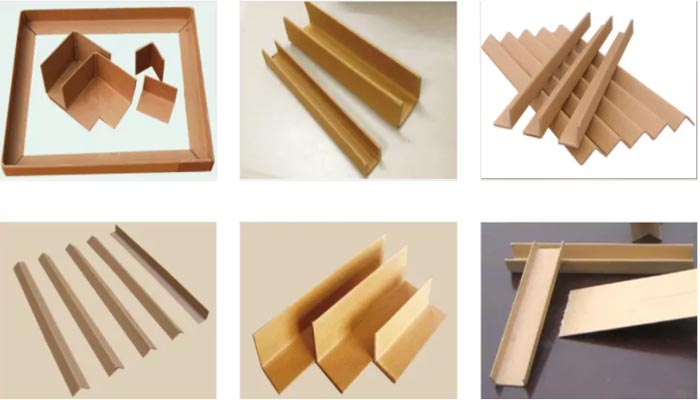

2) It is applicable to the processing and manufacturing of angle protection (width 20-100mm; thickness 2-8mm; length 50-9000mm).
3) The cutting and punching angle is servo motor (4.3kw * 2). The servo motor has good stability and large torque, as well as its unique extreme speed start and stop function, which is undoubtedly the best product for cutting and punching angle.
4) Cutting and punching angle are applied to a main machine at the same time, which greatly improves the production efficiency, saves labor, reduces the error of cutting and punching, and improves the yield.
5) The frequency converter is an anruiji product, which is a well-known brand in China, with high practical value, low failure rate and small repair rate. The motor can be controlled by frequency conversion so as to adjust the speed of the machine.
| Technical parameter | |
| Paper Angle Protection Specification | Wide20-100mm |
| Long50-9000mm | |
| Thick2-8mm | |
| Production speed | 0-10m/min (angle protection length 50-100mm) |
| 0-40m/min (guard angle longer than 1500mm) | |
| Host power | 7.5kw+4.3kw*2 |
| Control mode | Frequency control |
| Raw material | The surface of the paper 150g-200g |
| Core paper 300g-700g | |
| Cutting mode | Automatic cutting |
| Number of operators | 1-2people |
Our service:
Equipment warranty for one year (cylinder parts warranty for three months,the belt,mold,the blade is not not warranty)
1. equipment installation and commissioning after free repair period is one year.
2.free of charge to the customer technical guidance and training of equipment operation and maintenance of the knowledge.
3.from the use of nealect,vandalism,natural disasters damaged and in need of replacement parts of artificial,material fee will be charged.
4.in the warranty period is over, bassed on the parties intend to continue the development of cooperation,we provide lifetime repair service,only charge for the spare parts,material cost.
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo ink printer slotter die cutter machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler insert machine, paper core tube making cutting machine, flexo ink printing wastewater treatment machine and so on.
If you are also interested in this machine,please don’t hesitate to contact us:
