Short Description:

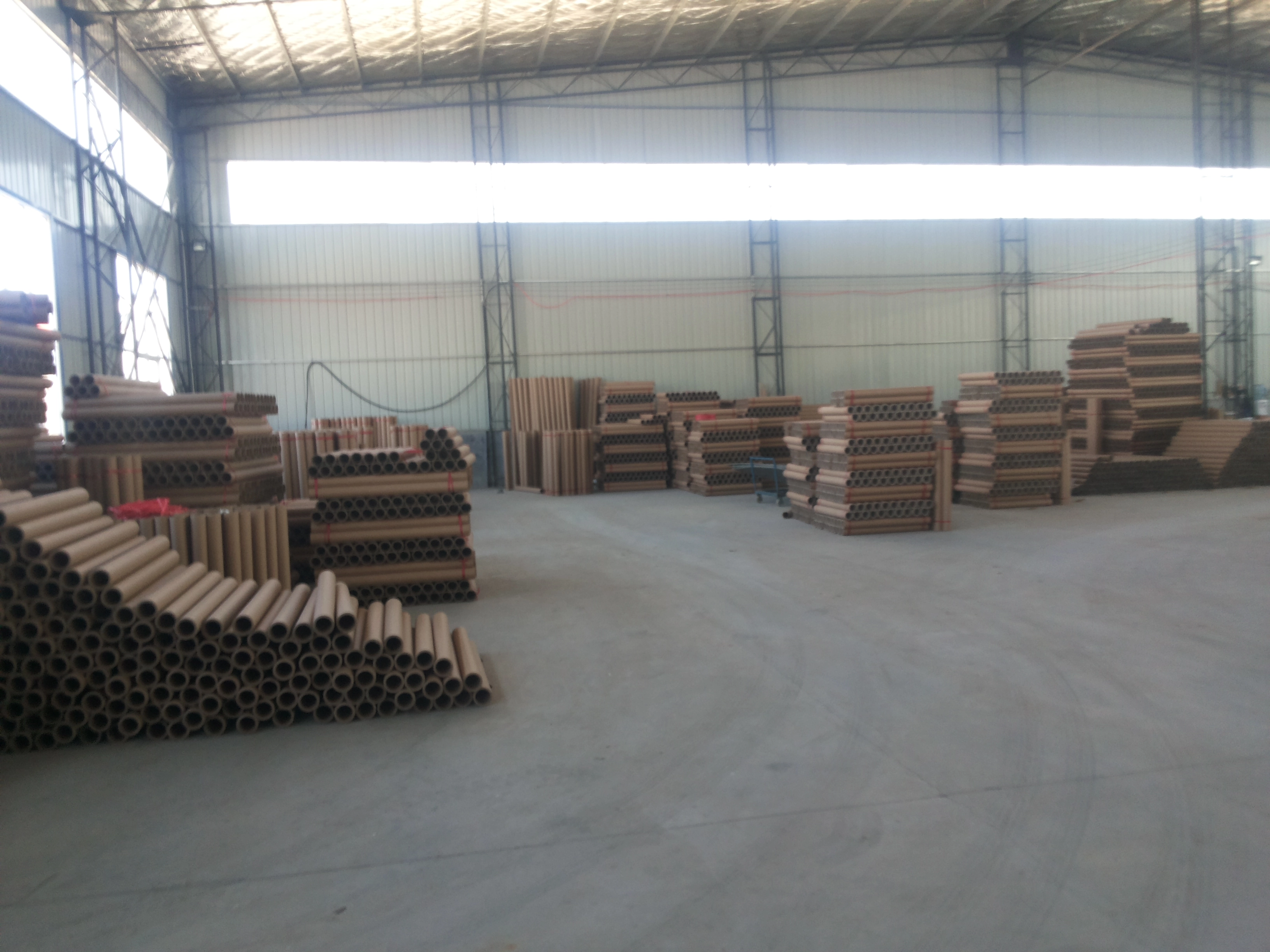

Paper tube machine is used for producing paper tube. The paper tube produced is used in various industries, chemical fiber industrial tube, film industrial tube, printing industry tube, paper industry tube, leather industry tube, food packaging tube. , pipes for the construction industry, tubes for the exhibition industry, etc.
There are also many types of paper tube machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines.


Product Detail

Product Tags

HTB13AuravjsK1Rjy1Xaq6zispXar

HTB123qkavfsK1RjSszgq6yXzpXa5

7680BD4024291758C947085C67073DAA

Paper tube machine main characters

Number of layer 2-7 layer
Paper tube diameter 20-60mm
Paper tube thickness 2-5mm
Production speed 1-20m/min
Length fixing way Light operated (infrared ray)
Rewind head two heads
Cutting way single circular knife cutting
Gluing way Double sides
Control mode Frenquency converter
Operator 1-3 people

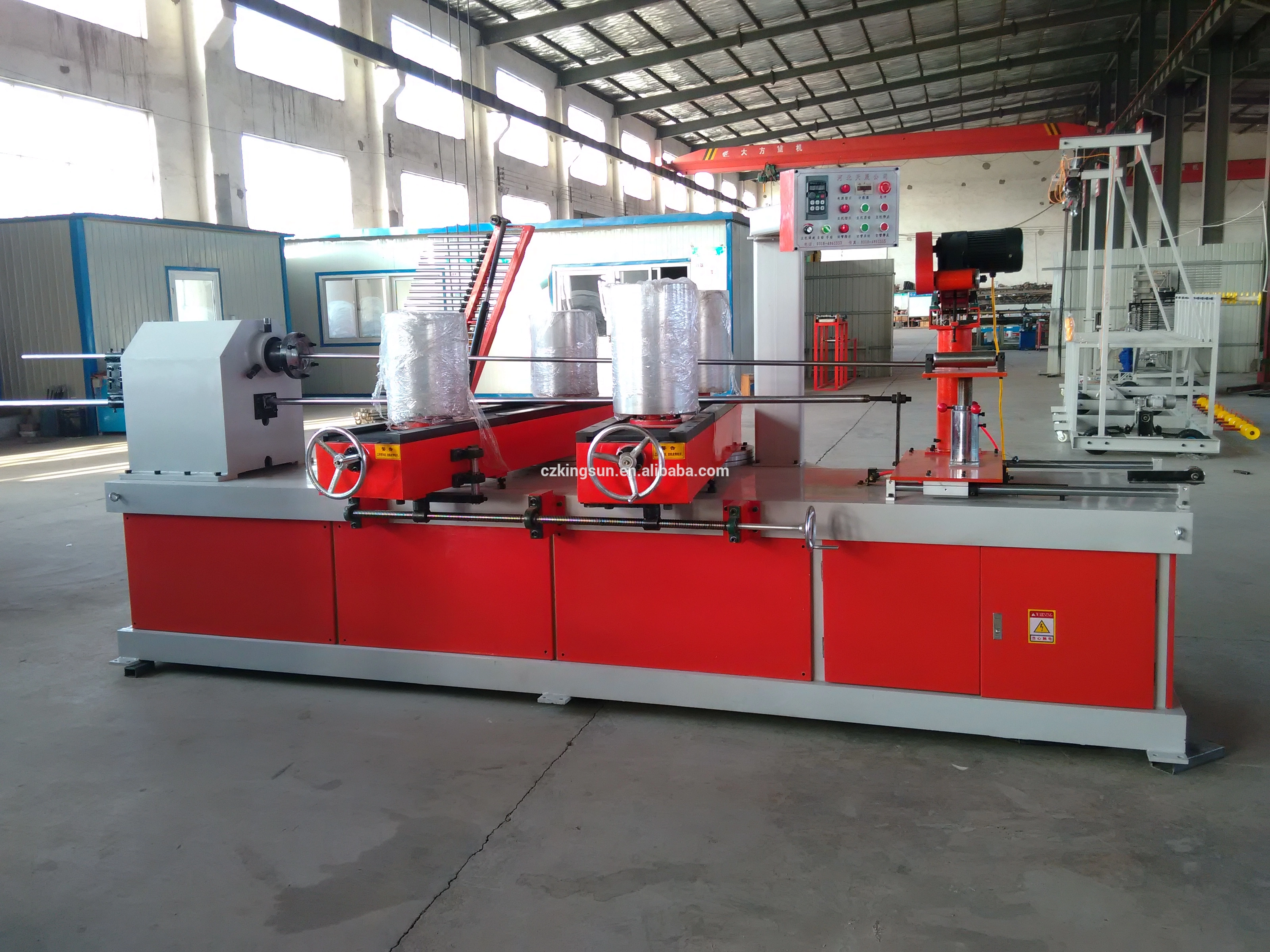

Paper Tube Making Machine For BOPP Core

Model AT-2
Total Power(W) 20KW
Dimension(L*W*H) Around 14000*1500*2200mm per set
Weight Around 3000-4000KG
Voltage 380V / 440V / Customized
Working speed 0-25m/min
Paper tube thickness 3-15 mm
Applicable glue type PVA and PVC and Startch glue
Tube inner diameter 20-100mm
Paper plies 16
Paper gramme 150-550gsm
In-line cutting unit Single circular knife
In-line cutting length 1000-4000mm
Service Engineer available to service machinery
