Semi automatic die cutting machine || WELLDOING Machinery - Welldoing trading limited
Specification Summary:

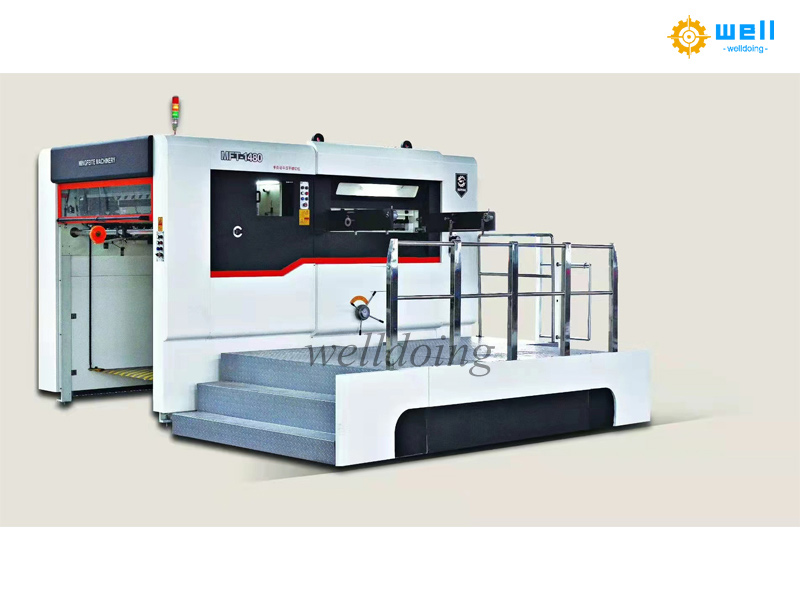

semi automatic die cutting machine is one of the best-selling products of our company. It can process ≥ 250 cardboard and corrugated cardboard ≤ 9mm. It is suitable for die-cutting indentation of cartons and cartons, especially for die-cutting of curved cardboard.
pizza box semi automatic die cutting machine
Die-cutting Section:
Imported parts, more accurate control. Bearings and electrical parts are international famous brands with reliable positioning and accurate control. Die cutting has a high degree of standardization and generalization, so as to meet the needs of cost reduction and mass production.
Electrical Section:
PLC control, safer and more reliable. The electric control system is controlled by PLC and equipped with various safety protection devices. In case of failure, it will give an audible and visual alarm and stop automatically to truly ensure the safety of man-machine.
| Type | 1300 | 1480 | 1650 | 1880 |
| Max. Paper size | 1330×980(mm) | 1480×1080(mm) | 1650×1210(mm) | 1880×1420(mm) |
| Min. Paper size | 550×480(mm) | 550×480(mm) | 650×550(mm) | 650×550(mm) |
| Max. Cutting size | 1300×960(mm) | 1450×1050(mm) | 1620×1190(mm) | 1850×1400(mm) |
| Max. Cutting pressure | 250×104N | 300×104N | 300×104N | 300×104N |
| Stock range | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g |
| Cutting precision | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) |
| Max. Mechanical speed | 4200s/h | 4200s/h | 3600s/h | 3000s/h |
| Pressure adjusting range | ±1(mm) | ±1(mm) | ±1(mm) | ±1(mm) |
| Min. Gripper Margin | Gripper ≥8(mm) | Gripper ≥8(mm) | Gripper ≥10(mm) | Gripper ≥10(mm) |
| Total Power | 16.5kw | 20.5kw | 20.5kw | 24.6kw |
| Machine dimension(include the work platform,Pre-feeder) | 6250×4510×2292(mm) | 6470×4650×2292(mm) | 6770×4820×2330(mm) | 7240×5637×2600(mm) |
| Machine dimension(exclude the work platform,Pre-feeder) | 4325×2450×2292(mm) | 4526×2596×2292(mm) | 4778×2805×2330(mm) | 5300×3035×2600(mm) |
| Gripper/needle numbers/each | 10 | 11 | 12 | 14 |
| Total Weight | ￣15.5t | ￣17.5t | ￣21.5t | ￣27t |
Products Advantages:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory

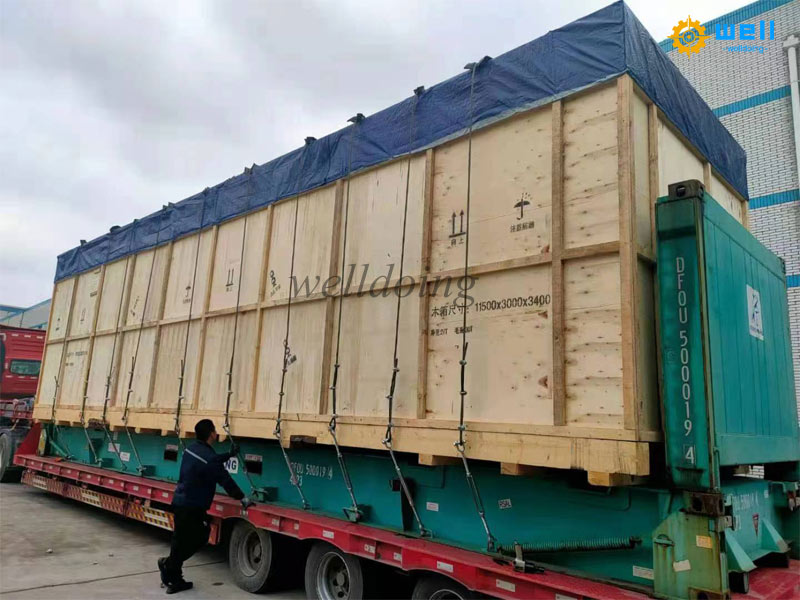

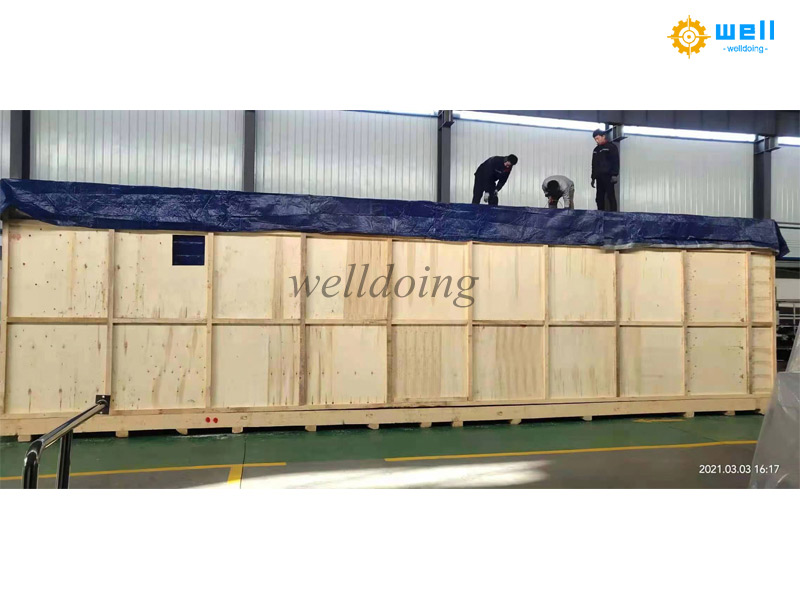

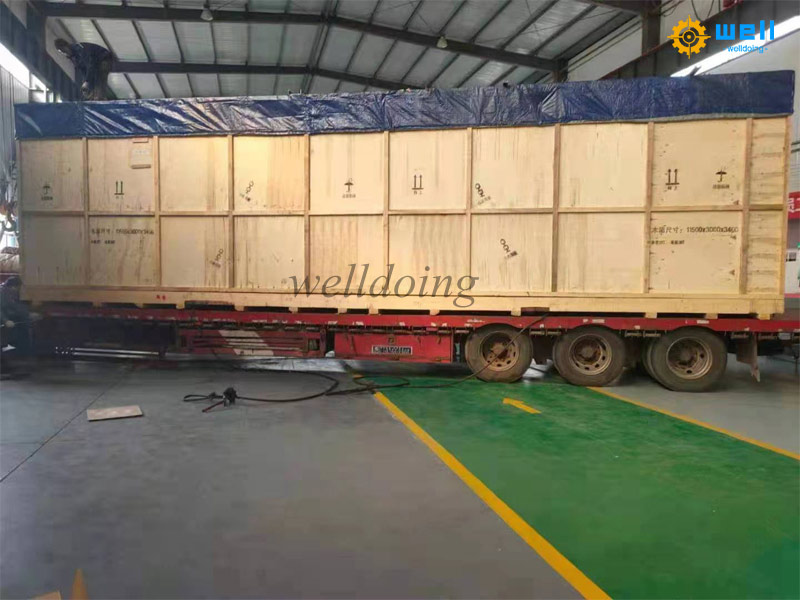

Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,
automatic flexo printer slotter die cutter stacker machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine, paper tube making machine, flexo ink printing wastewater treatment machine and so on.
