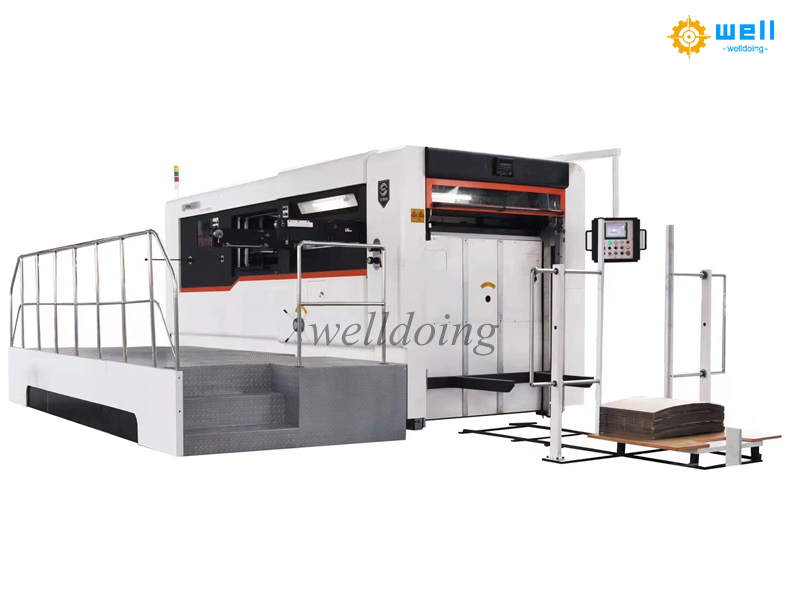

Semi automatic die cutting machine with stripping section - Welldoing trading limited
Specification Summary:
The semi automatic die cutting machine production line adopts the worm gear transmission mode, which makes the machine more stable and reliable. The unique waste cleaning device can easily remove the three sides and inner holes after die cutting, reduce labor intensity and save cost.
Stripping Section:
semi automatic die cutting and creasing machine adopts central positioning system in the stripping section to save replacing time and ensure accurate positioning, greatly improve production efficiency.
Delivery Section:
Paper supporting and receiving: flexible and free, greatly improving work efficiency, photoelectric detection device, safe and reliable, ensuring fast and stable paper receiving.
| Type | 1300Q | 1480Q | 1650Q | 1880Q |
| Max. Paper size | 1330×980(mm) | 1480×1080(mm) | 1650×1210(mm) | 1880×1420(mm) |
| Min. Paper size | 550×480(mm) | 550×480(mm) | 650×550(mm) | 650×550(mm) |
| Max. Cutting size | 1300×960(mm) | 1450×1050(mm) | 1620×1190(mm) | 1850×1400(mm) |
| Max. Cutting pressure | 250×104N | 300×104N | 300×104N | 300×104N |
| Stock range | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g |
| Cutting precision | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) |
| Max. Mechanical speed | 4200s/h | 4000s/h | 3600s/h | 3000s/h |
| Pressure adjusting range | ±1(mm) | ±1(mm) | ±1(mm) | ±1(mm) |
| Min. Gripper Margin | Gripper ≥8(mm) | Gripper ≥8(mm) | Gripper ≥10(mm) | Gripper ≥10(mm) |
| Total Power | 17kw | 21kw | 21kw | 25.07kw |
| Machine dimension(include the work platform,Pre-feeder) | 7580×4510×2292(mm) | 7890×4650×2292(mm) | 8305×4820×2330(mm) | 9020×5637×2600(mm) |
| Machine dimension(exclude the work platform,Pre-feeder) | 5642×2450×2292(mm) | 5940×2596×2292(mm) | 6293×2805×2330(mm) | 7080×3035×2600(mm) |
| Gripper/needle numbers/each | 10 | 11 | 12 | 14 |
| Total Weight | ￣17.5t | ￣19.5t | ￣21.5t | ￣27t |
Products Advantages:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory
Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.
