semi-automatic flexo printing slotting die cutting machine

semi-automatic flexo printing slotting die cutting machine - Welldoing trading limited

Short Description:

The chain feeding flexo printing slotting die cutting machine adopts a chain feed, which can complete printing, slitting, creasing, grooving, corner cutting, and pleating in one go

Send email to us Download as PDF

Product Detail

Product Tags

Semi automatic printer die cutter slotter machine function and Features:

Semi-automatic chain feeding with dual side gauge positioning ensures accurate printing of paper feeding.

CAD module design can be combined arbitrarily, with single, dual, and multi-color printing units.

Each unit is electrically split and pneumatically locked and relaxed. Equipped with alarm bells and lights to enhance operational safety.

When the machine stops, the inking roller automatically disengages from the printing plate, so as not to damage the surface of the printing plate.

◆ Self priming ink supply device, which can independently control the automatic idle cycle of the mesh roller for ink supply. The main machine pauses the surface to prevent dryness, and automatically cleans the mesh roller.

All transmission rollers and shafts are finely ground and plated with hard chromium.

The printing large plate roller adopts a hanging plate device and quick adjustment of the shaft body. Make pasting more accurate, time-saving, and labor-saving.

The circumferential direction of the grooving part of the plate roller adopts rapid phase 360 adjustment, and the reading dial displays. Electric phase adjustment of the slotting section to improve work efficiency.

Equipped with an automatic counting device, it can correctly control the production quantity.

The grooving and corner cutting tools are specially designed and manufactured, with a long service life and high durability.

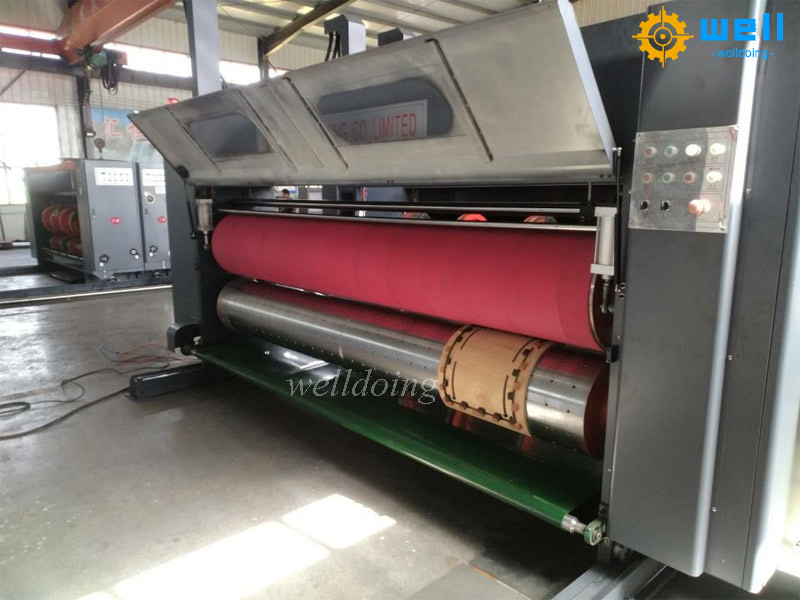

Die-cutting unit

◆ Axial automatic cycle translation.

◆ The soft cutting roller is equipped with Taiwan’s super durable and durable rubber sleeve

Equipped with an automatic repair device for soft cutting roller wear

◆ Equipped with linear speed tracking compensation function after repairing the upper and lower mold rollers.

The grooving and corner cutting tools are specially designed and manufactured, with a long service life and high durability.

The lower blade pad adopts imported Uni rubber pad, and the bottom shaft can be pneumatically lifted, making it less prone to damage the rubber pad during idle and phase adjustment.

During work, the bottom shaft adopts automatic left and right displacement, and the placement of die cutting automatically shifts, ensuring that the cutting marks are not repeated, greatly improving the service life of Uni Glue Heat.

◆ The upper knife adopts an imported Uni knife and is designed on a fixture, which is very convenient to install. In order to improve the service life of Uni glue, it is recommended that users use this knife in the future.
