corrugated cardboard partition assembler equipment parts list:

full automatic corrugated cardboard partition assembly machine

Automatic cardboard assemble machine feature:
Vacuum sucker adsorb feed cardboard lengthways
Pneumatic feed cardboard crosswise,right and fast
Electric adjust lengthways feeding cardboards device go up and down(D model )
Electric adjust crosswise feeding cardboards device go up and down
(D model)
Electeic adjust crosswise grating height(D model)
>Crosswise and lengthways feeding paperboards can work at same time
Adpot for every carton boxes,grating,parrying
Double station feed cardboard,double work efficiency
Pneumatic and electric control ensure the machine advancement
10.Adpot for compressed air hold-up vessel central gas supply,air pressure reliable
11.Testing faulting device,if has problem during the operation of machine,then will autoamtic stop work
12. PLC system ,easy operation

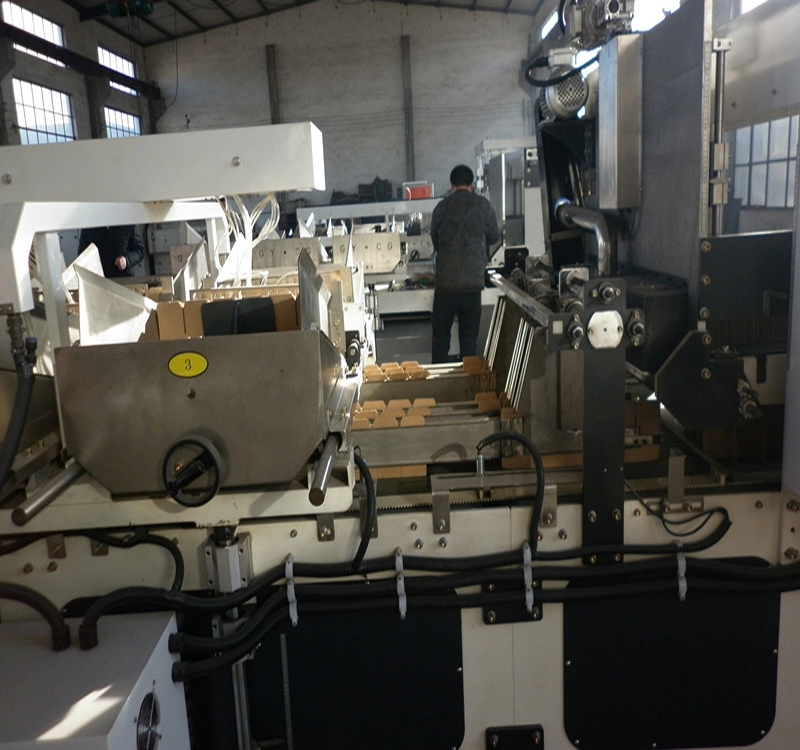

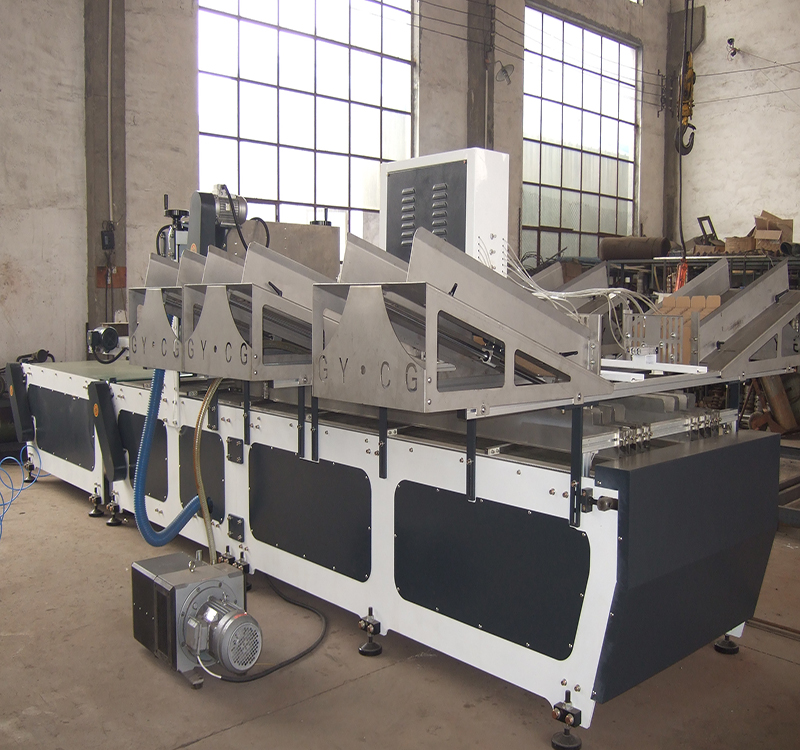

Full automatic partition assembler machine

corrugated cardboard partition assembly machine
Design speed: 40-60sers/min
Air pressure: common pressure 0.6-1.0Mpa
Electric: 380V 50Hz 3phase 4line
Machine working direction: as per customer plant

1. Introduction:automatic high quality carton box corrugated assembler partition machine with servo motor
A partition slotter is one of GBJ corrugated cardboard machine series produced by our factory; it integrates advantages of similar international and domestic products enbodying advanced technology than its predecessors. The working position adopts the method that turning arm structure drives slot pushing cardboard moving in front and back. Owing to its advantages in new and original outward appearance,
clean edges with no flaking signs, stable quality and long life-span, the machine is well received by customers after used for a long time, it is advanced for your needing.
1 High speed automatic  partition slotter
2.Max cardboard size:800-1500mm
3.Width of slot:3-5mm
4.Max depth of slot:150mm
Automatic high quality corrugated box automatic partition assembler machine with servo motor
The machine has 6 working axles, first pair axles carry cardboard, eccentric right handle of upper axle can be adjusted according to cardboard’s thickness, and the distance between two axles is fit to carry cardboard. Second pair axles are alexs of slotting, eccentric right handle can be adjusted according to cardboard’s thickness; it is a good distance for cardboard slot cut. Cardboard processed is carried outside the machine by third axles and pressure board presses the cardboard in order to prevent tool from lifting the cardboard. In order to protect from blocking up there are 6 shaving paper tools to clear scraps of paper at all time.

1.Vacuum sucker adsorb feed cardboard length ways
2.Pneumatic feed cardboard crosswise,right and fast
3.Electric adjust length ways feeding cardboard device go up and down
4.Electric adjust crosswise feeding cardboard device go up and down
5.Electrical adjust crosswise grating heigh
6.work at same time
7.Adopt t for every carton boxes,grating,parrying
8.Double station feed cardboard,double work efficiency
9.Pneumatic and electric control ensure the machine advancement
10.Adopt for compressed air hold-up vessel central gas supply,air pressure reliable
11.Testing faulting device,if has problem during the operation of machine,then will automatic stop work
12. PLC system ,easy operation
13.Design speed: 40-60sers/min
14.Air pressure: common pressure 0.6-1.0Mpa
15.Electric: 380V 50Hz 3phase 4line.
